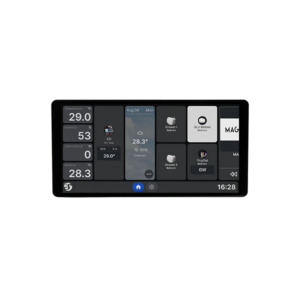

Shelly Wall Display X2i
Typically used for:
- Room management
- Centralized smart home control
- Home Assistant & Shelly Cloud Dashboards
The a premium 6.95-inch wall-mounted touch panel designed to be the central hub of your smart home. Featuring a high-resolution 1440x720p display, it allows for seamless control of all Shelly devices and scenes with an intuitive Android 11-based interface. Equipped with a powerful quad-core processor and dual-band Wi-Fi 6, the X2i provides lightning-fast performance. It includes integrated sensors for temperature, humidity, ambient light (LUX), proximity, and a G-sensor for gesture control. The device also features a built-in 5 A relay for direct appliance control and a built-in speaker for audio notifications. Available in Black or Silver to complement any modern interior.
- Large 6.95" touch color display (1440 x 720p resolution)
- Integrated 5 A relay for appliance control (neutral required)
- Advanced Wi-Fi 6 (Dual Band 2.4/5 GHz) and Bluetooth 5.0 connectivity
- On-board sensors: Temperature, Humidity, LUX, Proximity, and G-sensor
- Supports Home Assistant dashboard integration
- Android 11 OS with Quad-core ARM Cortex-A55 CPU and 2GB RAM / 16GB Flash
- Dual power options: 110-240 VAC mains or 5 V USB-C
- Built-in speaker for alerts and audio feedback
Navigate your smart ecosystem with ease using the. This expansive display replaces multiple switches, offering a unified interface for lighting, climate, and energy monitoring. With its sleek glass and aluminum finish, it can be mounted in portrait or landscape orientation to fit your space perfectly. Specifications PHYSICAL Physical Specs: Length: 17.8 (cm) Width: 8.7 (cm) Height: 3.6 (cm) Weight: 0.292 (kg) Mounting: Wall box Shell material: Plastic, Aluminum, Glass Color: Black / Silver ENVIRONMENTAL Ambient temperature: -20 °C to 40 °C Humidity: 30 % to 70 % RH Max. altitude: 2000 m ELECTRICAL Power supply: 110-240 VAC, 50/60 Hz / 5 V USB-C Power consumption:< 5.0 W OUTPUT CIRCUITS RATINGS Max switching current AC: 5 A SENSORS & FEATURES Built-in Sensors: Temperature, Humidity, Light (LUX), Proximity, G-sensor Audio: Built-in Speaker RADIO Wi-Fi protocol: Wi-Fi 6 (802.11 b/g/n/ac/ax) 2.4 / 5 GHz Bluetooth Protocol: 5.0 Range: Up to 30 m indoors and 50 m outdoors
Max Load is the Maximum rated Load and it is not recommended that this device is used for anything more than short duration at or near the Maximum.
Higher loads require sufficient allowance for excess heat.
Australia and New Zealand Safety Standard (AS/NZS) compliant, SDoC available on request.
