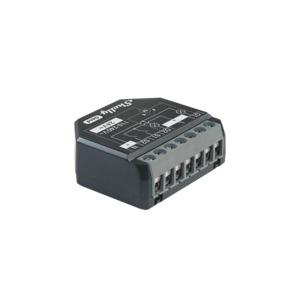

Shelly 2PM Gen4
2 Channel Smart Relay
Typically used for:
- Covers & Blinds
- Power monitoring
- Lights
- Appliances
Automate lights and monitor their real-time power consumption.
Cover (Roller) Control - Automate and control the current position of roller shutters, curtains, garage doors, awnings, gates, electric sliding doors, pool covers, bi-directional AC motors
Includes Bluetooth for easy setup.
Power Metering
With the new , you have the capability to observe and analyze the energy usage of your automated appliances while efficiently controlling your consumption. Equipped with two integrated precise power meters, this device enables you to monitor the consumption of each channel independently. Additionally, the availability of stored consumption data at no extra cost assists you in predicting your expenses and empowers homeowners to effectively reduce their electricity bills.
Mobile App Control
Turn devices on/off directly from your smartphone or tablet.
Wi-Fi Connected
Just connect Shelly to your Wi-Fi network and begin the ultimate experience of controlling your home with your phone.
Voice assistant compatible
Control your appliance with your voice. Shelly OS is Google Home and Amazon Echo Compatible.
Weekly Scheduling
Create custom daily schedules for your devices.
Following the Sunlight
Shelly Relays can automatically turn on/off based on the sunrise and sunset hours.
Free Cloud
All you need to manage your a smartphone and the Shelly Cloud free mobile application.
Countdown timer
No more forgotten appliances left on. The integrated countdown timer can automatically switch off your oven after an hour.
Key Features:
- 2 channels on the same phase
- Power metering on each channel
- Cover (roller) control - Automate and adjust the position of roller shutters, blinds, curtains, awnings, bi-directional AC motors.
- Slats angle control - use with your venetian blinds and control the tilt position (angle) of slats to adjust the amount of light in a room.
- New processor - ESP-Shelly-C68F chip with an increased memory of 8 MB
- Matter & Zigbee compatible (with a Zigbee gateway)
- Improved durability of terminals
- Virtual components
- Wi-Fi range extender & Bluetooth gateway
- Supports scripting, webhooks, MQTT, WebSocket, HTTPS, UDP, TLS and custom certificates
- No HUB required! Easy control through Shelly Smart Control app, various home automation protocols, platforms, as well as voice assistants. Specifications
Physical
Size (HxWxD):
Length: 37 (mm) Width: 42 (mm) Height: 16 (mm) ±0.5 (mm)
Weight:
30 (g)
Screw terminals max torque:
0.4 Nm / 3.5 lbin
Conductor cross section:
0.2 to 2.5 mm² / 24 to 14 AWG (solid, stranded, and bootlace ferrules)
Conductor stripped length:
6 to 7 mm
Mounting:
Wall box
Shell material:
Plastic
Shell color:
Black
Terminals color:
Black
Environmental
Ambient working temperature:
-20 (°C) to 40 (°C)
Humidity:
30% to 70% RH
Max. altitude:
2000 (m)
Electrical
Power supply:
110 - 240 V~ / 24 V⎓ ±10%
Power consumption:
< 1.4 W
External protection:
Tripping characteristic B or C,
16A max. rated current,
min. 6 kA interrupting rating,
energy limiting class 3
Output circuits ratings
Max. switching voltage:
240 V~
30 V⎓
Max. switching current AC:
10 A (per channel), 16 A (total), 18 A (total peak)
Max. switching current DC:
10 A
Sensors, meters
Voltmeter (AC):
Yes
Ammeter (AC):
Yes
Internal-temperature sensor:
Yes
Radio
Wi-Fi
Protocol:
802.11 b/g/n
RF band:
2412 - 2472 MHz
Max. RF power:
< 20 dBm
Range:
Up to 30 (m) indoors and 50 (m) outdoors
(Depends on local conditions)
Bluetooth
Protocol:
4.2
RF band:
2402 - 2480 MHz
Max. RF power:
< 4 dBm
Range
