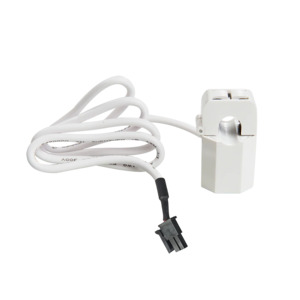

Shelly 50A Current Transformer Clamp Gen3

Shelly current transformers (CTs) convert large currents into small, standardized values for precise measurement. They deliver a secondary current that is accurately proportional to the primary current, ensuring reliable data. These transformers impose a minimal load on the primary circuit, optimizing efficiency and performance. Perfect for accurate monitoring and control in various applications.

The length of the CT clamp's cables is 60 cm.

Compatible with Shelly Pro EM and Shelly EM Gen3 Specifications CURRENT TRANSFORMER 50A Accuracy 1% Core Ferrite core Electrical Strength 3000VAC 1mA60s Internal diameter 11mm Cable length 60cm Load Resistance 20Ω Rated Primary Current 50A Rated Secondary Current 16.67mA Saturation current ≥85A Size 23,5mm x 41,5mm x 26mm CURRENT TRANSFORMER 120A Accuracy 1% Core Ferrite core Electrical Strength 3000VAC 1mA60s Internal diameter 17mm Load Resistance 20Ω Rated Primary Current 120A Rated Secondary Current 40mA Saturation current ≥120A Size 31mm x 45mm x 30mm FEATURES Compatible 50A Shelly Pro EM and Shelly EM Gen3
