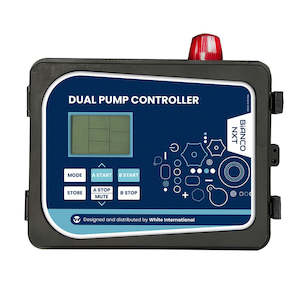

BIA-NXT-DPC3-110 - nXt Dual Pump Control Panel - 415V 5.5 - 11kW

The BiANCO NXT-DPC (Dual Pump Controller) is a module intended to control and protect a pair of three phase pumps up to a nominal 11 kW ea. The user can select a control logic sequence to match their application and enjoy the benefits of superior control and protection for the pump.

There are 3 primary control logic modes

- ‘Drainage’ where control is concentrated at the source
- ‘Boosting’, which references pressure switching for control
- ‘Transfer,’ which is a mix of source and destination control

NXT-DPC has 2 x passive dry contacts and is equipped with a RS485 modbus interface to connect to a BMS By digitally monitoring the running current, the response time of the BiANCO NXT DPC is superior to traditional analogue overload methods.

Product Code BIA-NXT-DPC3-110
Technical Specifications Brand Bianco iCON
and Data Sheets
Operation and Installation Manuals
Certificates & Compliance Information
Price includes GST
