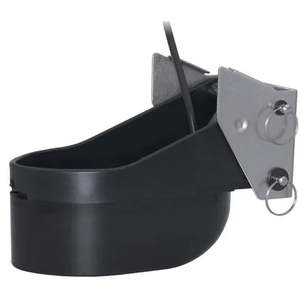

Airmar TM265LH CHIRP 1kW Transom Mount Transducer dual-channel Low / High 130-210 kHz

Engineered for serious anglers, the TM265LH combines dual-channel CHIRP technology with 8 internal ceramic elements to deliver superior fish detection across variable depths.

The best performing 1 kW transom mount, this transducer has a maximum depth of 3,000 feet; an operating frequency of 42 to 65 kHz and 130 to 210 kHz; a beamwidth of 16 to 25 degrees or 6 to 10 degrees; and mounts on a 3 to 21 degree transom.

Transducer kit comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.

Features

- Depth and fast-response water-temperature sensor
- 1kW power for great deep-water performance to 3000’ (914m)
- Urethane transom transducer with a stainless-steel bracket for installation on boats of all propulsion types
- Recommended boat size: Up to 32' (10m)
- Hull Type: Fiberglass, wood, aluminium or steel
- Interfaces to any compatible CHIRP Sounder with CP450c connector
- Also available in thru-hull (B265), pocket/keel mount (PM265), cavity mount (CM265), and in-hull (M265) models
- Comes with a Garmin 12 pin orange connector but can be adapted to work with Simrad, Furuno and Humminbird Apex with the correct adapter box/cable
