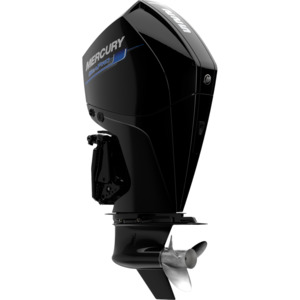

SeaPro 225 Mercury Outboard

Mercury engineers strategically trimmed weight to produce some of the lightest engines in the class—by up to 30 pounds—and the powerhead configuration has been optimized to minimize size. Ideal for commercial fishing vessels, commercial workboats and law-enforcement boats. SPECIFICATIONS - 225 HP / kW

- 225/168 Engine type

- V8 MidSection

- Conventional MidSection Displacement (CID/CC)

- 279 CID Displacement (L)

- 4.6L Cylinder Configuration

- V-8 64 degree with Dual Overhead Cam DOHC and 32-valves Full throttle RPM

- 4800-5600 Air induction

- Performance-Tuned Long-Runner Intake Manifold Fuel induction system

- Electronic Fuel Injection (EFI) Computer Controlled with Advanced Range Optimization Alternator amp / Watt

- 85-amp (1071 Watt) with Idle Charge Recommended fuel

- Unleaded Regular 87 Octane Minimum (R M/2) or 90 RON 10% Ethanol Maximum Recommended oil

- NMMA Certified FCW SAE 25W-40 (Optional 10W-30 for Cold Conditions) Engine protection operator warning system

- SmartCraft Engine Guardian Compatible with SmartCraft digital technology

- Yes Starting

- Electric Start with SmartStart Protection Controls

- Remote Mechanical or Digital Throttle & Shift (DTS) Steering

- Big Tiller (optional)
- Hydraulic (standard)
- Power (optional) Shaft length

- 20" / 508 mm
- 25" / 635 mm
- 30" / 762 mm Gearcase ratio

- 1.75:1 Dry weight Lightest model available

- 527 lbs / 239 kgs CARB star rating

- 3 Bore and stroke

- 3.6 in x 3.4 in / 92 mm x 86 mm Ignition

- SmartCraft PCM 112 Digital Inductive Cooling system

- Water-cooled with thermostat Gear shift

- F-N-R Gearcase options

- 5.44" Trim system

- Power trim and tilt Exhaust system

- Through prop Counter Rotation

- Available Color

- Phantom Black Lubrication system

- Integrated wet sump Oil Capacity

- 7.0 Quarts / 6.6 Liters Maximum Trim Range

- 20° (-6° to 14°) Maximum Tilt Range

- 73° (-6° to 67°)
