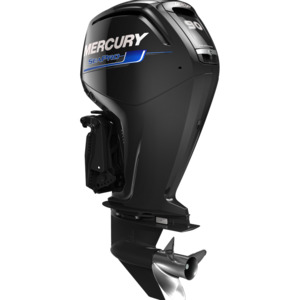

SeaPro 90 Mercury Outboard

The engine built for you to depend on, offering trouble-free, low-maintenance performance in the harshest working environments. For commercial fishing vessels, commercial workboats and law-enforcement boats.

SPECIFICATIONS - 90 HP / kW

- 90 / 67 Engine type

- 8-valve single overhead cam (SOHC)
- Inline 4 Displacement (L)

- 2.1 Full throttle RPM

- 5000-5500 Air induction

- Performance-Tuned Scroll Intake Manifold Fuel induction system

- Computer Controlled Multi-Port Electronic Fuel Injection (EFI) Alternator amp / Watt

- 35 amp / 441 watt with water-cooled voltage regulator Recommended fuel

- Unleaded Regular 87 Octane Minimum (R M/2) or 90 RON 10% Ethanol Maximum Recommended oil

- NMMA Certified FCW 25W-40 Synthetic Blend Engine protection operator warning system

- SmartCraft Engine Guardian Compatible with SmartCraft digital technology

- Yes Starting

- Smart Start Electric Controls

- Mechanical throttle & shift Steering

- Big Tiller
- Dual cable mechanical
- Hydraulic Shaft length

- 20" / 508 mm
- 25" / 635 mm Gearcase ratio

- 2.38:1 Dry weight Lightest model available

- 363 lbs / 165 kg Bore and stroke

- 3.5 x 3.2" / 90 x 81 mm Ignition

- SmartCraft ECM 70 Digital Inductive Fuel system

- Electronic Fuel Injection (EFI) Cooling system

- Water-cooled with thermostat Gear shift

- F-N-R Trim system

- Power Tilt
- Power Trim Exhaust system

- Through prop Shallow water trim range (degrees)

- 20 Color

- Phantom Black Lubrication system

- Wet sump Oil Capacity

- 5.5 qts / 5.2 l Maximum Trim Range

- 22° (-6° to 16°) Maximum Tilt Range

- 70° (-6° to 64°)
