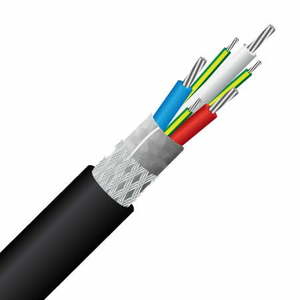

3 Core + 3xEarth (4G), 70.0mm², TCW, XLPE 90°C, Foil/Braid, 0.6/1KV, Variable Speed Drive Cable (MASVSD4G70.0)

Application:

For use with VSD’s where protection against RFI and EMI is required. Fixed application.

Voltage 0.6/1KV
Conductor Stranded Tinned Copper Conductor
Insulation XLPE, X-90
Core Colours Red, White, Blue, Green/Yellow (Split Earth)
Bedding SPVC, 5V-90
Screen 85% Tinned Copper Braid c/w 100% Foil Screen
Sheath SPVC, 5V-90, Black
Operating Temp. -20°C to 90°C
Max. DC Resistance @ 20°C (Ω/KM) 0.268

Standards: AS/NZS1125 , AS/NZS 008, AS/NZS5000.1, IEC60 2-1-2, RoHS Compliant Datasheet (PDF) SKU: MASVSD4G70.0 Category: Copper Braid Screen VSD Cable Tags: Industrial Power Cable, VSD #gap-1277957024 padding-top: 0px; Contact Maser #text- 90867981 text-align: center; #image 1271 151 1 width: 47%; @media (min-width:550px) #image 1271 151 1 width: 100%;
