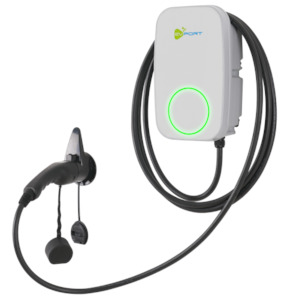

Installation + EVPORT Smart Home EV Charging Stations EV Charger AC 7.4kW Smart Tethered | Type 2 Plug | AppControl | Built-in RDC-DD | 7.5-meter tethered cable | EVC1L-3210B75

Specifications:

- Power Supply: 1P N PE
- Voltage: AC 220~240V, 50/60Hz
- Rated Current: 32A (adjustable 6~32A)
- Rated Power: Max 7.4kW
- Connector Type: Type 2 Plug with a 7.5-meter tethered cable
- Color: White & Grey

Features:

- 7.4kW Single-Phase Charger with Max 32A output
- Dynamic Load Balancing
- Tethered Type 2 Plug for convenience
- 3-color LED indicator (Blue, Green, Red)
- Built-in WiFi & Bluetooth for Smart APP Control
- Scheduled Charging for optimized energy use
- Built-in RDC-DD, requiring only a Type A RCD for safety and cost savings as per WorkSafe EV Charging guidelines

Connectivity:

- WiFi and Bluetooth enabled
- Compatible with Smart Life and Tuya Smart apps for iOS and Android

Safety Protections:

- Overcurrent
- Residual Current (AC 30mA, DC 6mA)
- Ground and over/under voltage
- Over-temperature

Ingress Protection:

- Charger: IP65
- Connector: IP54

Certifications:

- AS/NZS 3820:2020
- CE, UKCA, CB
- Standards: EN 61851, EN 62196

Installation: Wall-mounted
Working Conditions:

- Temperature: -25°C ~ 50°C
- Humidity: 3% ~ 95%

Dimensions & Weight:

- Product Size: W 200mm x D 109mm x H 330mm
- Net Weight: 4.0 kg
- Gross Weight: 5.0 kg

Warranty: 24 months
