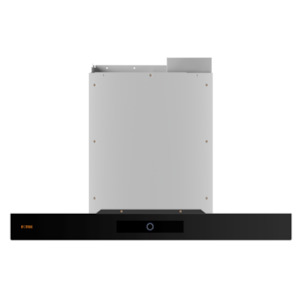

Fotile 90cm T-shape Rangehood airflow 1280³/h EMG9060

Wing-like Surround Suction Plate (Coanda Effect)

- Transforms central extraction into four-sided perimeter extraction.
- Expands smoke coverage from a single ‘point’ to a wide ‘area’.
- Ensures more efficient and precise smoke removal.

Next-Generation Silencore Fan System

- Airflow up to 1280m³/h for rapid smoke extraction.
- 1130Pa static pressure surpasses industry standards.
- Stepless speed regulation adapts to resistance for consistent performance.
- Ultra-quiet operation — as low as 37dB (library-level quietness).

304 Stainless Steel Body

- Durable, high-quality construction.
- Provides a modern, luxurious appearance.

Intelligent Wave Control

- Hands-free operation with a simple wave gesture.
- Eliminates the need for physical buttons.

Air Manager Technology

- Continuously monitors kitchen air quality.
- Automatically activates extraction when harmful gases (e.g., benzene, formaldehyde) are detected.
- Creates a healthier kitchen environment.

Skyline Full-Area Lighting

- Wide LED lighting evenly covers the entire cooking surface.
- Adjustable 3-level dimmable lighting for ambience and practicality.

Touch Motion Control

- Colour film touch panel for intuitive operation.
- Delay shutoff: 5 minutes (1 min high speed 4 min low speed). Technical Parameters

- Certification: SAA
- Product Size (W×D×H): 895 × 525 × 634 mm
- Power Supply: 220–240V, 50Hz
- Max Static Pressure: 1130Pa
- Max Airflow: 1280m³/h (IEC 61591)
- Noise Level: 53dB
- Illumination Power: 5W LED
- Lighting Levels: 3-Level Dimmable
- Input Power: 360W
- Motor Type: BLDC (Brushless DC Inverter)
- Motor Power: 355W
- Control Type: Touch Motion Sensor
- Fan Speeds: 3 Boost
- Delay Shutoff: Yes (5 min)
- Screen Lock: Yes
- Boost Function: Yes
- Air Management: Intelligent Air Management System
