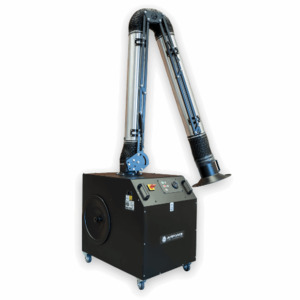

Strata Airforce FE210ARM Mobile Fume Extractor With 3m Heavy Duty Articulated Arm
The Strata Airforce FE210 is a mobile welding fume extraction system designed for fabrication workshops and industrial welding applications.
Delivering W3 certified filtration efficiency greater than 99%, the FE210 effectively captures hazardous welding fumes before they spread through the workspace, making it suitable for stainless steel, alloy and mild steel welding applications.
The FE210 features a high efficiency Sintexx Plus nanofibre cartridge filter, integrated spark arrestor and dust collection drawer for effective capture of dry welding fumes and particulate.
A differential pressure filter monitor provides clear indication of filter condition while the cartridge cleaning system allows simple routine maintenance.
Powered by a 1.1kW single phase motor, the FE210 delivers up to 2500m³/h fan capacity and 1100m³/h extraction at the hood. The compact mobile design allows easy positioning around welding bays and fabrication areas where source capture extraction is required.
Features:
3.0m Heavy Duty Articulated Arm - Allows easy positioning close to the weld area for efficient fume capture.
W3 Certified Filtration - Captures welding fumes with filtration efficiency greater than 99%.
Filter - High efficiency Sintexx Plus nanofibre filter media.
Easy Filter Cleaning - The cartridge filter can be cleaned without removal for faster, cleaner maintenance.
Clogged Filter Alarm - Differential pressure switch alerts the operator when filter servicing is required.
Anti-Spark and Trap Dust Draw - Helps protect the filter from sparks and makes collected dust easier to remove.
Mobile Workshop Design - Compact, wheeled design makes it easy to move around fabrication bays and work areas.
Powerful 2500m³/h Fan Capacity - Driven by a 1.1kW single-phase motor for reliable extraction performance.
Model: FE210ARM unit with 3m multi-directional articulated arm with Ø160mm rigid hood with damper.
Made in Italy
Specifications: Motor Power: 1.1kW - 230V Filtration Efficiency: W3 >99% UNI EN ISO 21904-1/2:2020 Articulated Arm: 3m Filter Area: 6.3m² Cartridge Extraction At Hood: 1100m³/h Fan Capacity: 2500m³/h Filter Media: Sintexx Plus - High Efficiency Corrugation and Nanofiber lining Main Unit Dimensions: 561 x 765 x 740mm (excl Arm)
Download Strata FE210ARM User Manual Here
Download Strata FE210ARM Brochure here
