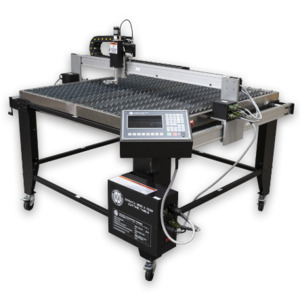

Strata WS1212 Workshop Series Plasma Cutting Table
The Strata WS1212 Workshop Series CNC Plasma Cutting Table is a large-format CNC cutting system designed for fabrication workshops, maintenance teams and light industrial production.
With capacity for sheets up to 1220 × 1220mm, it allows larger components to be cut without first resizing the material, reducing handling and preparation time.
A precision rack and pinion drive system provides smooth movement across the cutting area, while the stepper motor system supports accurate and repeatable positioning.
Automatic Torch Height Control continuously adjusts the torch during operation to help maintain consistent cut quality across uneven surfaces and varying material thicknesses.
The stand-alone CNC controller allows cutting files to be loaded directly by USB without requiring a connected computer.
An integrated 125L waterbed helps control sparks and fumes while reducing heat distortion and supporting material stability during cutting.
The heavy-duty steel frame is fitted with locking castors for stable operation and easier positioning within the workshop.
Why Choose The WS1212?
The WS1212 is suited to workshops that require greater cutting capacity than the compact WS66. Its larger working area is ideal for full sheet processing, larger fabricated components and repeat production work while retaining stand alone operation and a workshop friendly footprint.
Features:
Handles sheets up to 1220mm × 1220mm
Rack and pinion drive system for smooth and accurate travel
Automatic Torch Height Control (THC) for precise, consistent cutting
Stand-alone CNC controller for simple programming and operation
Stepper motor drive system
Integrated 125 litre waterbed
Produces clean, repeatable cuts with minimal operator intervention
Heavy-duty steel frame with locking castors
What's Included:
WS1212 CNC Cutting Table (Flat Pack)
FLCam Software
CNC controller with Torch Height Control
Stepper motor drive system
Torch mounting hardware
Integrated waterbed
Assembly hardware
Important Information
The WS1212 is supplied as a CNC cutting table only. A compatible CNC-ready plasma cutter, machine torch and compressed air supply are required for operation and are sold separately.
Ideal Applications:
Fabrication workshops
Sheet metal processing
Manufacturing and production
Larger fabricated components
Automotive and motorsport fabrication
Engineering workshops
Model: WS1212
Specifications: Power Requirements 240V AC ±10%, 50/60 Hz, 5A Plate Capacity 1220mm x 1220mm x 6mm Maximum Load Capacity 204kg (including workpiece and full waterbed) Torch Travel X-Axis: 1250mm Y-Axis: 1100mm Z-Axis: 54mm Movement Accuracy ±0.2mm Cutting Accuracy ±0.5mm Waterbed Dimensions 1335mm x 1340mm x 70mm Dimensions (W x D x H) 1955mm x 1800mm x 1270mm Height 1400mm including castors Weight 150kg
The Strata WS1212 provides a practical step up in capacity for workshops that need to cut larger sheets and components accurately. With automatic torch height control, stand-alone CNC operation and an integrated waterbed, it offers a complete cutting table platform ready to pair with a suitable plasma cutting system.
