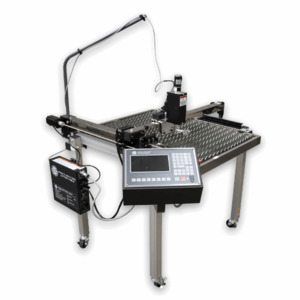

Strata WS66 Workshop Series CNC Plasma Cutting Table
The Strata WS66 Workshop Series CNC Cutting Table is a compact CNC plasma cutting system designed for fabrication workshops, maintenance teams and manufacturers who need accurate, repeatable cutting without sacrificing valuable floor space. With a 610 × 610mm cutting area, it is ideal for producing brackets, gussets, signage, repair parts and other small to medium components with consistent precision.
Designed for ease of use, the WS66 features a stand-alone CNC controller with USB input, eliminating the need for a dedicated computer during operation. Simply load your cut file via USB and start cutting. Automatic Torch Height Control (THC) continuously adjusts torch height throughout the cut, helping maintain cut quality across varying material thicknesses while reducing consumable wear.
An integrated water table helps minimise heat distortion, sparks and fumes during cutting, while the lead screw drive system with stepper motors delivers smooth, accurate movement for detailed profiles and repeatable results.
Mounted on locking castors, the table can be easily repositioned within the workshop or moved into storage when required.
Whether you're producing one-off components or small production runs, the WS66 provides an efficient introduction to CNC plasma cutting.
Why Choose the WS66?
The WS66 is the ideal entry point into CNC plasma cutting for businesses that need professional cutting performance without the footprint of a larger production table. Compact, accurate and easy to operate, it's perfectly suited to prototype work, repair jobs, light fabrication and small batch production.
Features:
Compact 610 × 610mm CNC cutting area
Automatic Torch Height Control (THC) for consistent cut quality
Stand-alone CNC controller with USB input
Integrated water table helps reduce heat, sparks and fumes
Lead screw drive system with minimal backlash for accurate positioning
Stepper motor drive system for smooth, repeatable cutting
Includes FLcam software for creating and managing cutting files
What's Included:
WS66 CNC Cutting Table (Flat Pack)
FLCam Software
CNC Cut Controller
Stepper motor drive system
Torch Mounting hardware
Integrated waterbed
Assembly hardware
Important: The WS66 is supplied as a CNC cutting table only. A compatible CNC ready plasma cutter, machine torch and compressed air supply are required for operation and are sold separately.
Ideal Applications:
General fabrication
Engineering workshops
Maintenance and repair facilities
Small batch production
Custom metal fabrication
Automotive and motorsport fabrication
Educational and training workshops
Model: WS66
Specifications: Power Requirements 240V AC ±10%, 50/60 Hz, 5A Plate Capacity 610mm x 914mm x 6mm Maximum Load Capacity 90kg (including full waterbed and workpiece) Waterbed Capacity 39.4 litres Torch Travel X-Axis: 610mm Y-Axis: 610mm Z-Axis: 50mm Movement Accuracy ±0.2mm Cutting Accuracy ±0.5mm Waterbed Dimensions 705mm x 1018mm x 55mm Dimensions (W x D x H) 1333mm x 1397mm x 1536mm Weight 72kg
The delivers an affordable, space-efficient CNC cutting solution for workshops looking to improve productivity, accuracy and repeatability. With automatic torch height control, an integrated waterbed and stand alone CNC operation, it's a practical choice for businesses ready to take the next step into CNC plasma cutting.
