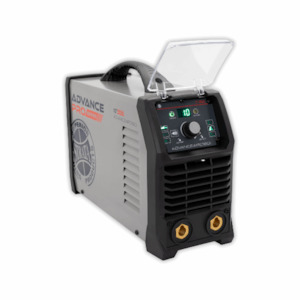

Strata 160A DC ARC Inverter Welder With Active PFC - AdvanceArc160i
The AdvanceArc Series of MMA (Stick) welders offer the latest IGBT and PFC (Power Factor Correction) technology optimizing both duty cycle and energy efficiency.
The 160A Strata Advance Arc is lightweight yet durable, it provides consistent power and control, ideal for detailed TIG welding jobs and rugged MMA tasks alike. This welder is ready to perform under pressure with Multi Voltage Input capability and VRD Protection for enhanced safety.
Features:
Max Ouput (Arc) - 160A
Max Electrode Size - 4.0mm
Input Power Supply - 10A 230V
Microprocessor control system with superior and dynamic arc characteristics.
IGBT Inverter technology for smooth and stable welding output.
Active PFC technology, Increased duty cycle and energy efficiency. Can be safely used with long extension lead.
Equipped with multi-voltage technology, giving you piece of mind when operating on generators or long extension cords.
Increased safety with MMA VRD protection mode.
Extreme stress tested in production up to 440V, ensuring rugged reliability and superior performance in harsh and demanding conditions.
Adjustable arc force and hot start enable good control and ease of use when MMA welding.
Lift TIG welding operation for precision in aesthetically important welding jobs (torch optional).
Accurate pre-setting and feedback of welding parameters and output with the Digital Display Meter.
Durable and reliable with high quality and over specified electronic components.
Intelligent protection system with temperature, voltage and current sensors for increased reliability and safety.
Industrial IP23 casing with front panel protection resists damage, moisture and corrosion.
Lightweight & compact design for portable applications.
Designed to work with generator power supply with protection from power surges - (6.5kVA min)
Accessories:
4m MMA Lead
4m Earth Lead
Model: AdvanceArc160i
Specifications: Input Power Supply 230V AC 10A 50/60Hz Input Power Tolerance 200V - 260V Maximum Input Current 22.9A Generator Capacity 6.5KVA MMA Current Output 10A - 160A MMA O/C Voltage 65V / 14.5V Limited MMA/TIG Duty Cycle
160A @ 20%
135A @ 60%
105A @ 100% Lift Tig Current Output 10 - 160A Lift Tig Duty Cycle
160A @ 35%
135A @ 60%
105A @ 100% Insulation Class IP23 Power Efficiency 85% Power Factor 0.99 Standards AS/IEC60974-1:2012 MMA Rod Size 1.6 - 4.0mm Dimensions mm:
390 x 146 x 278mm Weight: 4.5kg
