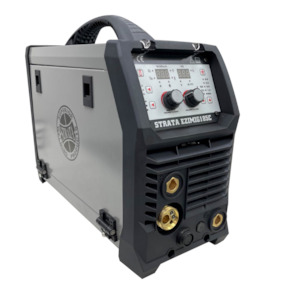

Strata 180A Portable Synergic Multi Process Mig Welder
Designed for todays industrial professional, this ultra compact Inverter multi-process welder includes IGBT inverter technology and synergic MIG operation for increased reliability and consistent welding results. With simple LCD control settings, generator friendly for offsite use and super light weight this multi function welder is ready to use.
The EZIMIG185C single phased machine, has also been e xtreme stress tested to 440V and IP23 moisture and salt spray protection, and therefore is built to last. The high quality components exceed the rated electronic requirements, providing long lasting consistency and durability.
Weld with soft wires such as aluminum or MIG brazing with bronze wires effectively - using the handy remote controlled spool gun connection.
Features:
Compact, portable and ultra lightweight.
Single phase, 230V, 10A input power.
MIG, MMA, and Lift TIG capabilities ideal for a range of welding tasks and aesthetics.
Reversible polarity MIG Welding. Operation suitable for gas and gasless MIG welding.
MIG Inductance and Burnback control.
Digital microprocessor control system for superior and dynamic Arc characteristics.
Adjustable MMA Hot start and Arc force functions.
2T/4T Spot Weld Trigger Control.
IGBT Inverter Technology for smooth and stable welding output.
Synergic MIG Operation with Simple control setting for Parameter Save/Recall.
Intelligent protection system with temperature, voltage and current sensors.
Dual digital display meters for accurate pre-setting and feedback of welding parameters and output.
Supplied With:
Binzel Style 250 MIG Torch
Earth and ARC set
Argon Regulator and CO2 Adaptor
Drive Roller 'V' Groove (0.6 - 0.8mm and 0.9 - 1.0mm)
Spool gun connection with remote control.
Metal Chassis wire feeder for consistent and smooth wire feed.
Quick connect inlet gas fitting.
Designed to work with generator power supply and protect from power surges.
Model: EZIMIG185C
Specifications Input Power Supply: 230V AC 10A 50/60Hz Input Power Tolerance: 230± 10%V Maximum Input Current: 26A Generator Capacity: 7KVA Mig Output Voltage: 10V - 26V Mig Output Current: 40 - 180A MIG Duty Cycle: 180A@15% 130A@60% 100A@100% Wire Feeding Speed: 1.5 - 15m/minute MMA Current Output: 10A - 180A MMA O/C Voltage: 65V MMA/TIG Duty Cycle: 160A@10% 130A@60% 100A@100% Insulation Class: IP23 Power Efficiency: 85% Power Factor: 0.65 Standards: EN60974 - 1:2012 MIG Drive Rollers Available: V Groove: 0.6 / 0.8 / 0.9 / 1.0mm Knurled: 0.8 / 0.9 mm Mig Wire Spool Size: D200mm / 5KG MMA Rod Size: 1.6 - 3.2mm Dimensions mm: 460 x 190 x 360 Weight: 11kgs
24 Month Warranty
