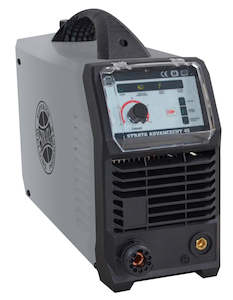

Strata 40A PFC Inverter Plasma Cutter, ADVANCECUT45
Sever cut up to 19mm of carbon steel with intelligent machine and plasma torch protection system.
The ADVANCECUT 45 offers a powerful machine in a compact package - ideal for the serious industrial user.
IGBT Inverter technology for smooth & stable output and increased reliability.
Microprocessor control system with superior & dynamic arc characteristics.
Increased duty cycle and energy efficiency with active PFC technology.
Multi voltage input - will operate with wide range of input voltage, can even be used with long extension leads.
Protected external air regulator with water trap/filter enabling easy adjustment and servicing.
Safe and robust connection to machine with Euro Connect torch system.
Advanced Strata plasma torch with European torch head enables superior cutting performance and long consumable life.
Non-HF arc starting system increases reliability and lowers EMF pollution.
Auto pilot arc control increases cutting control, especially for discontinuous cutting.
Lightweight and compact design - ideal for portable applications.
Extreme stress tested in production up to 440V, ensuring rugged reliability.
Industrial IP23 casing with front panel protection, resists damage, moisture and corrosion.
Durable and reliable with high quality & over specified electronic components.
Intelligent plasma torch protection system protects torch damage from incorrect air pressure, consumables not in place, excessive pilot use.
Intelligent machine protection system with temperature, voltage and current sensors for increased reliability & safety.
Designed to work with generator power supply with protection from power surges.
Air flow manual activation switch sets and tests air pressure without triggering the torch
Accessories Included:
3m Earth Lead with heavy duty earth clamp
Strata XT4000 PT-60 6m plasma torch
Model: ADVANCECUT45
Specifications: Input Power Supply: 230V AC 15A 50/60Hz Input Power Tolerance: 90V - 275V AC Maximum Input Current: 21A Generator Capacity: 6KVA Duty Cycle: 40A@44% 30A@100% Insulation Class: IP23 Power Efficiency: 80% Power Factor: 0.99 Standards: EN60974 - 1:2012 Plasma Output Current: 20 - 40V Compressed Air Requirement: 110L / min 5bar Plasma Production Cut Capacity Carbon Steel: 16mm Plasma Production Cut Capacity Aluminum: 12mm Plasma Severance Cut Capacity Carbon Steel: 16mm Dimensions: 510 x 146 x 278mm Weight: 8kg
