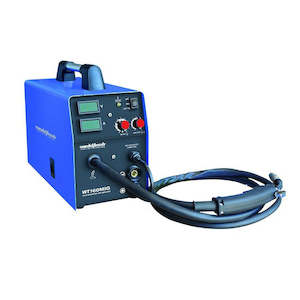

WeldTech WT160MP, 160A Gas / Gasless Inverter MIG Welder
The WELDTECH WT160MP is an ultra versatile 160A MIG and ARC Welder, weld like a pro with stepless controls and IGBT Inverter Technology.
Perfect for welding thin panel and plate up to 6mm thick!
Great for workshop jobs, exhaust systems and anything on the farm.
Powerful - 160A welding power up to 8mm steel thickness.
Portable - Only 9kg super light weight and portable.
Reliable - Cutting edge inverter technology ensures ultimate reliability.
ARC and MIG function for variety of jobs.
Stepless voltage and wire speed control.
60% duty cycle @ 130A.
Overload protection for increased reliability.
Model: WT160MP
Specifications: Input Power Supply 230V AC 10A 50/60Hz Input Power Supply Tolerance 170V - 265V AC Maximum Input Current 21.5A MIG Voltage Output 15V - 22V MIG Current Output 40A - 160A MIG Duty Cycle 160A@20% 130A@60% 100A @100% MMA/ TIG Current Output 30A - 140A MMA O/C Voltage 50V MMA /TIG Duty Cycle 140A@25% 120A@60% 100A@100% MMA Rod Size 1.6 - 3.2mm Power Efficiency 0.85 Insulation Class IP21 MIG Wire Size
Steel 0.6 / 0.8mm
Knurled 0.8 / 0.9mm Power Factor 0.83 Mig Wire Spool Size Mini spool - D200mm / 5kg Wire Feeding Speed 2-11m / minute Generator Capacity 5KVA Dimensions 395 x 165 x 290mm Weight 9kgs
