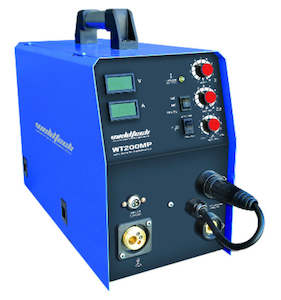

WeldTech 200A Gas / Gasless Inverter Welder - Mig / Tig And Arc Capable

200A Gas / Gasless Inverter MIG Welder

Weld like a pro with the WeldTech WT200MP - Inverter, a powerful 200A MIG, TIG and ARC welder.

Produces professional results at the workshop or on-site projects!

Infinite variable controls and IGBT inverter technology make set up a breeze.

Exceptional results on gasless welding.

Powerful - 200A welding power up to 12mm steel thickness.

Portable - Only 13kg super light weight and portable.

Multi-Process - All in one machine for ARC, MIG and TIG.

Inductance adjustment for precise weld control.

Optional spool gun available for aluminum and silicon bronze.

MIG 60% duty cycle @160A, ARC 60 duty cycle @ 130A.

230V single phase on 15A plug.

Live digital displays for accurate feedback of welding input.

Stepless voltage and wire feed control for optimum weld control.

Lift TIG with optional TIG torch.

Supplied With:

3m MB25 Euro Connect MIG torch.

3m MMA lead with Twist Lock.

Electrode Holder.

2m Earth Lead.

CO2 Gas Regulator.

2m Gas Connection Line.

Optional Accessories:

Spool Gun for aluminum.

Tig Torch

Model: WT200MP

Specifications: Input Power Supply 230V AC 15A 50/60 Hz Input Power Supply Tolerance 170V - 265V AC Maximum Input Current 29.4A Input Generator Capacity 7kVA MIG Voltage Output 15V - 24V MIG Current Output 40A - 200A MIG Duty Cycle 200A@25% 160A@60% 120A@100% MMA/ TIG Current Output 30A - 170A MMA O/C Voltage 50V MMA /TIG Duty Cycle 170A@25% 130A@60% 100A@100% Insulation Class IP21 Power Efficiency 0.85 Power Factor 0.83 MIG Wire Size

Steel 0.6/0.8/0.9/1.0mm

Knurled 0.8/0.9mm Wire Feeding Speed 2 - 15 m/minute Mig Wire Spool Size

D200mm / D300mm

5Kg or 15Kg Post Gas Flow Time 2s MMA Rod Size 1.6 - 4.0mm Dimensions 485 x 220 x 390mm Weight 13kgs
