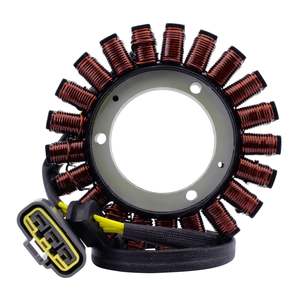

Stator BMW R1200 Models '12-'18 (RMS010-105024)

Brand new aftermarket Stator.

Features:

- Direct replacement of your original unit.
- Plug-and-play, direct fit, easy installation.
- Highest grade of lamination materials.
- Highest grade of copper winding, resistant to 200 degrees Celsius.
- Connectors included.
- Rubber grommet included.
- All products shipped are tested.

Specifications:

- Dim ensions:

- Interior diameter: 60 mm
- Exterior diameter:133 mm
- Thickness: 18 mm
- Length of wires stator to grommet: 68 mm
- Length of wires grommet to plug: 470 mm
- Other specifications:

- Number of wires: 3
- Number of plugs: 1
- Number of pins: 3
- Number of poles: 21
- Wire-to-wire resistance:

- Alternator 3p: Between each Yellow = 0.4 ohms -20
