Mudstuck 9500lbs Winch 12V with Dyneema (SHORT DRUM)
Compact size. Full-size pulling power.
The Mudstuck 9500lb Compact Winch delivers serious strength in a more compact body, making it perfect for vehicles with tighter winch mounting spaces. After two years of development and real-world testing with Green Motorsports, this winch has proven its mettle in New Zealand’s toughest off-road conditions.
Ideal for those needing power without bulk, this winch won’t let you down when it’s time to haul, recover or load up.
Compare Our Winches
Not sure which winch is right for you? Check out our winch comparison page here.
Ideal for:
4WDs, utes, and trucks with limited mounting space
Recovery jobs in rugged terrain
Off-road builds, trailers, and general lifting
Anyone who needs serious performance in a smaller package Key Features:
Compact drum and body for tighter installs
IP67 rated – dust and water resistant
12V 5.2hp motor with powerful pull
Turn clutch for fast winching control
Tried and tested in conditions
Includes Dyneema rope and both remote options Technical Specs:
Rated pull: 9,500lbs / 4,309kg (single line)
Motor: 12V permanent magnet, 5.2hp
Gearbox: NGWN planetary gear, 216:1 reduction
Drum size: 64mm x 134mm
Battery leads: 1.83m
Rope: 16m of 9.1mm Dyneema (rated to 7,341kg)
Line speed: 10.8m/min
Amp draw under load: 350A
Winch weight: 23kg
Mounting measurements: 165mm x 114mm

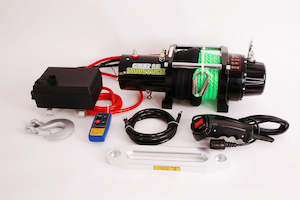

Overall dimensions: 432mm x 162mm x 170mm In the Box:
Mudstuck 9500lb Compact Winch
Fairlead
Wired Remote
Wireless Remote
Dyneema Rope (16m)
- ATV Manual
- Offroad Winch Manual
