EWI Female XLR to Male TRS Adaptor

Ewi make high quality, affordable products that are suitable for a wide range of applications.
Perfect for studio, live perfomance and everyday use.

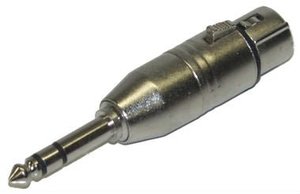

EWI CA311 3 Pin Female XLR to Male 1/4" TRS Barrel Adaptor

This is handy if you have a XLR patch cable that you need to plug into the input of an effects device with a female 1/4" TRS panel jack.

Wiring: The 1/4" TRS connection is hardwired straight through to the FXLR connection with:

1) Tip of the TRS connection wired to pin #2 of the FXLR connection.

2) Ring of the TRS connection wired to pin #3 of the FXLR connection.

3) Sleeve of the TRS connection wired to pin #1 of the FXLR connection.

There's nothing really special about this connector other than it's inexpensive, and fully compatible with standard 3 pin XLR connections and 1/4" TRS connections. This is a solid built barrel adaptor suitable for professional applications. The body is nickel silver finished metal. The contact points are reasonably good quality spring steel.

EWI CA311 Key Features :

• Standard 3 pin Female XLR to Male 1/4" TRS adaptor

• Solid metal construction

• Average contact point quality

EWI CA311 Applications:

• Balanced 3 pin XLR cord end connector

• Commonly used on microphone cables and other Balanced XLR type interconnect cords

EWI CA311 Specifications :

• Manufacture : EWI

• Model : CA-311

• Type : 3 Pin Female XLR to Male 1/4" TRS Adaptor

• Construction : All metal housing

• Color : Nickel silver

• Weight : 0.12 lbs.
