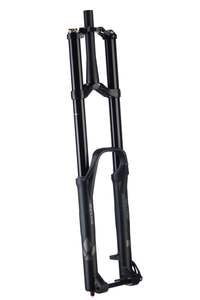

Formula Belva - Enduro / E-Bike Dual Crown MTB Fork

Dual-Crown Enduro Fork

Comes with a Free Reverse Black-ONE D-2 Direct Mount Stem - fits 31.8 or 35 mm bar

This is the Enduro fork we wanted, so we made it.

As engineers, we believe the best solution to building a stiffer, long-travel fork is by using a dual-crown design.

The Belva is not just a rebadged DH fork. With custom CNC crowns, lightweight 35mm stanchions, a 43mm offset, tapered steerer and 15mm axle it’s enduro ready.

Weighing in at 2,370g the Belva is comparable in weight to a 38mm single crown fork but a whole lot stiffer.

Absolute stiffness isn’t everything, though. Using our proven Selva lowers, the Belva can flex where it is most needed. With the dual crown and a direct mount stem, you can have laser sharp steering and confidence-inspiring stiffness, combined with trail-hugging traction and comfort.

And the name? In Italian, the Belva is a mythical beast from Dante’s Divine Comedy. A fitting name for a fork built to devour trails.

Technical specifications TRAVEL Standard - 160-170-180mm
GEOMETRY Axle to Crown - 575mm-585mm at 170mm of travel Axle to Crown - 585mm-595mm at 180mm of travel Fork Offset (Rake) - 43mm Max Rotor Size - 220mm
STEERER TUBE Size - Tapered 1.5" Color - Black Anodized
CROWN Color - Black Material - Hollow Forged Aluminum
LOWERS Color - Black (matt) / Ultraviolet (matt) Dropout - 15QR BOOST Axle - Integrated Locking System (ILS): 15QR
STANCHIONS Diameter (Ø) - 35mm Material - 7075 Aluminum Finish -Hard Anodized Black
ADJUSTMENTS Rebound - 18 Click Adjustment Compression - High and Low Speed 12 Click Adjustment Compression Tuning System - Gold and Blue valves included (other valves optional) Neopos - Optional Lockout - Crown mounted Remote Cartridge Control - Optional
OTHER FEATURES Damping - Drop-In Cartridge with Internal Floating Technology Spring type - Air spring Negative spring - Steel (triple coil technology)
WEIGHT Standard version - 2.370g
