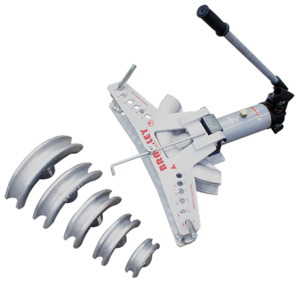

Bramley Model 024 Hydraulic Pipe Bender N.E.W Supplies

Bramley Model 024 Hydraulic Pipe Bender Suit Nominal Bore Pipe only, not suitable for thin wall tube Flip top frame for easy pipe and former replacement Spring return ram Bending radius measuring stop Two-stage pump action Lightweight aluminium alloy formers with large angle of arc to support pipe during bending. This results in a bend of superior quality Cross section of formers is of “elliptical" form to minimise flattening of bend Solid frame fabrication eliminates flexing during bending operation Hydraulic ram is easily removed from frame and converts to 16 ton jack Formers’ spigot size 38mm Former: Part Number: Radius of Bend:1/2 " 22-11 75mm3/4" 22-12 105mm1" 22-13 140mm1 1/4" 22-14 175mm1 1/2" 22-15 200mm2" 22-16 240mm
