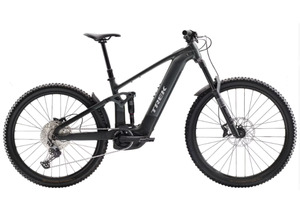

TREK Rail+ 5 Gen 5
The Rail 5 is an alloy enduro e-bike that delivers huge value for big adventures. Its rugged Alpha Platinum Aluminium frame partners with a RockShox Deluxe Select RT shock and Psylo Gold RC fork (160 mm rear/front) to charge through the roughest terrain on the mountain. A Shimano Deore 12-speed drivetrain and 4-piston MT4100 brakes deliver clean shifting and brake modulation that doesn't break the bank. It's topped with a TranzX dropper post and tubeless-ready Bontrager Line TLR 30 wheels for charging into anything.
https://www.youtube.com/watch?v=o7gF6O2FoCs?cc load policy=1&autoplay=1&modestbranding=1&hl=en&cc lang pref=en&rel=0&
SPECIFICATIONS: (Subject to change from TREK without notice) Frame - Alpha Platinum Aluminium, Removable Integrated Battery (RIB 2.0), tapered head tube, guided internal routing, Motor Armor, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, 34.9 mm seat tube, ABP, UDH, Boost148, 12 mm thru axle, 160 mm travel Fork - RockShox Psylo Gold RC, DebonAir spring, Isolator RC damper, tapered steerer, 44 mm offset, Boost 110, 15 mm Maxle Stealth, 160 mm travel Shock - RockShox Deluxe Select RT, 205 mm x 65mm Hub front - Bontrager sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle Hub rear - Bontrager alloy, sealed bearing, 6-bolt, Shimano MicroSpline freehub, Boost148, 12 mm thru axle
Skewer rear - Bontrager Switch thru-axle, removable lever
Rim - Bontrager Line TLR 30, Tubeless-Ready, 32-hole, Presta valve
Charger - Bosch standard 2A, 230V, smart system Controller - Bosch System Controller BRC3100, smart system
Drive Uniti - Bosch Performance Line CX, 32 km/h max assist
Shifter - Shimano Deore M6100, 12-speed
Rear derailleur - Shimano Deore M6100, long cage
Crank arm - E thirteen E spec Plus, 160 mm length
Cassette - Shimano Deore M6100, 10-51, 12-speed
Chain - Shimano Deore M6100, 12-speed
Pedal - VP-536 nylon platform
Max. chainring size - 1x: 36T
Saddle - Bontrager Verse P3, steel rails
Seatpost - Size: S - TranzX JD-YSI34, 100 mm travel, internal routing, 34.9 mm
Size: M, L, XL - TranzX JD-YSI34, 170mm travel, internal routing, 34.9 mm
Handlebar - Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width
Grips - Bontrager XR Trail Comp, nylon lock-on
Stem - Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 50 mm length
Head set - Integrated cartridge bearing, 1-1/8" top, 1.5" bottom, angle adjust cup compatible
Brake - Shimano 4-piston hydraulic disc, MT4100 lever, MT420 calliper
Brake rotor - Shimano RT66, 6-bolt, 203 mm
Weight - (M) 25.28 kg (with TLR sealant, no tubes)
Weight limit - This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg.
