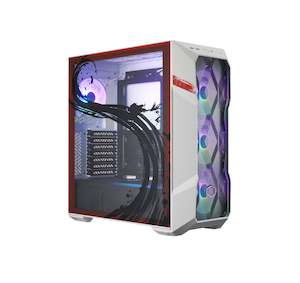

Cooler Master MasterBox TD500 V2 SF6 RYU Edition Mid Tower ATX Gaming Case

- Street Fighter 6 style, in collaboration with Capcom
- Polygonal FineMesh Front Panel
- 4x CF120 ARGB Fans Included
- USB 3.2 Gen 2 Type C Support
- Tool-Free TG Side Panel
- PSU Shroud With Removable Cover
- ARGB Controller Included

READY, FIGHT!

Featured by CoolerMaster's best selling TD500 Mesh V2 collab-with one of the most famous Fighting game Street Fighter.
Do you ready for the challengers?

FINEMESH PERFORMANCE FRONT PANEL

Polygonal FineMesh Features a 3D contour and is also capable of simultaneously providing high airflow and dust filtration.

4X CF120 ARGB FAN INCLUDED

Pre-installed CF120 ARGB fans provide ample airflow, ensuring low temperatures, high performance, and eye-catching aesthetics during even the most intense gaming sessions.

USB 3.2 GEN2 TYPE-C SUPPORT

USB 3.2 Type-C port built into the I/O panel allows multi-purpose, streamlined data transmission

ARGB/FAN HUB INCLUDED

The included controller allows users to manage systems lighting independently from the hardware configuration and provides the user with additional fan headers in case of need.

REMOVABLE TOP PANEL

The top panel is entirely removable for improved access during assembly and ease of mounting of cooling options.

TOOL-FREE TG SIDE PANEL

Featuring a tempered glass side panel with Street Fighter character elements, completely toolless for quick access to the internals.

PSU SHROUD WITH REMOVABLE COVER

TD500 Mesh V2's removable PSU cover allows users to freely decide whether to showcase or keep their PSU hidden.

VERSATILE COOLING SUPPORT

Support for 7x 120mm fans and 360mm front and top radiator support ensure that performance is not compromised.

HARDWARE COMPATIBILITY

TD500 Mesh V2 is natively compatible with ITX, M-ATX and ATX motherboards.
E-ATX motherboards such as SSI-CEB models, are compatible with dimensions up to 12" x 10.7".

Specifications

Model Number

TD500V2-WGNN-SRY

Exterior Color

White

Materials - Exterior

Steel, Mesh, Plastic

Materials - Left Side Panel

Tempered Glass

Dimensions (L x W x H)

499 x 210 x 500mm (Incl. Protrusions), 430 x 210 x 477mm (Excl. Protrusions)

Volume

50L

Motherboard Support

Mini ITX, Micro ATX, ATX, SSI CEB, E-ATX , ( up to 12" x 10.7" motherboards, may impact cable management feature)

Expansion Slots

7

3.5" Drive Bays

2

2.5" Drive Bays

3

I/O Panel - USB Ports

2x USB 3.2 Gen 1, 1x USB 3.2 Gen 2 Type C

I/O Panel - Audio In / Out

1x Audio Jack

I/O Panel - Other

1x ARGB Fan Hub

Pre-installed Fans - Front

3x 120mm CF120 ARGB

Pre-installed Fans - Rear

1x 120mm CF120 ARGB

Fan Support - Top

3x 120mm, 2x 140mm

Fan Support - Front

3x 120mm, 2x 140mm

Fan Support - Rear

1x 120mm

Radiator Support - Top

120mm, 140mm, 240mm, 280mm, 360mm, (recommended maximum thickness -55mm)

Radiator Support - Front

120mm, 140mm, 240mm, 280mm, 360mm

Radiator Support - Rear

120mm

Clearance - CPU Cooler

165mm/6.49"

Clearance - PSU

200mm, (Recommended up to 170mm)

Clearance - GFX

410mm / 16.14"

Cable Routing - Behind Motherboard Tray

19mm / 0.74"

Dust Filters

Front, Top, Bottom

Power Supply Support

Bottom Mount, ATX

Series

MasterBox Series

Size

Mid Tower
