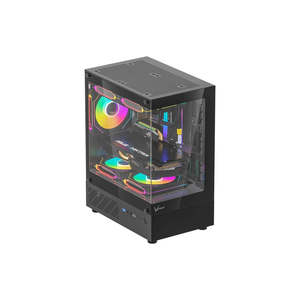

Formula V Line Crystal Z1CM Plus Black AR mATX Mini Tower Case

The cooling and hardware layout shown in the product photos is for reference only. Please check the product specifications below for the actual configuration

Crystal Z1CM Plus

Experience a stunning panoramic view with the Crystal Z1CM Plus. Featuring full tempered glass front and side panels, it provides a clear showcase of your hardware while enhancing your setup with a sleek, modern aesthetic. Available in ARGB and FRGB versions, it delivers vibrant lighting options to match your style. With optimized cooling, effortless cable management, and a design focused on both and visual appeal, the Crystal Z1CM Plus is the ideal choice for gamers who want a balance of performance and aesthetics.

Seamless Glass Showcase

Showcase your build with elegance using panoramic tempered glass front and side panels, offering a wide, unobstructed view of your PC's interior.

Versatile Cooling Options

The Crystal Z1CM Plus is available with Cosmic 12 ARPW fans for customizable lighting effects or Cosmic 12 FR fans for a fixed, radiant glow.

Gain mastery over your system's temperature management using the Crystal Z1CM Plus. It accommodates up to 5 fans, enabling you to fine-tune your cooling performance. The case includes side panel air vents, ensuring effective airflow and circulation, while the fans on the bottom panel offer targeted cooling for your GPU.

Compatibility and Expandability

Crystal Z1CM Plus is versatile, accommodating Micro-ATX, and Mini-ITX motherboards, ensuring compatibility for your build. It can handle CPU coolers up to 160mm in height and graphics cards up to 280mm, enabling you to harness the full power of your hardware.

Dual Chamber Design

Thanks to the dual chamber design of the Crystal Z1CM Plus, managing your cables is a breeze. Experience enhanced airflow and a tidy, uncluttered interior that maximizes performance. The internal cable management offers plenty of room to efficiently route and conceal your cables.

Convenient Access To Your Media

Stay connected and access your peripherals effortlessly through the convenient I/O ports situated on the case's top. Featuring USB 3.0 and Type C ports, along with HD audio, you'll have all your essential connections readily accessible.

Specifications

Model

Crystal Z1CM Plus Black AR

Color

Black

Case Type

Mini Tower

Steel Thickness

0.45mm

Body Material

SPCC

Motherboards

micro ATX / mini-ITX

Case Dimensions

452 x 242 x 356mm

3.5" Drive Bays

1

2.5" Drive Bays

1

Expansion Slots

4

GPU Clearance

280mm Max.

CPU Cooler Clearance

160mm Max.

I/O Ports

Type C x 1, USB3.0 x 1, HD Audio

Power Supply

ATX

Top radiator

240mm Max.

Rear fans

1 x Cosmic 12BK/WH ARPW Included

Top fan

2 x Cosmic 12BK/WH ARPW Included

Bottom fan

2 x 120mm Max.
