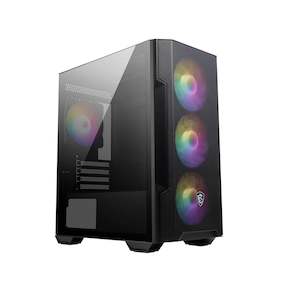

MSI MAG M100R Black mATX Mini Tower Case

- Can install up to 6x system fans, providing ventilation and stable performance to the whole system.
- Tempered Glass Side Pane displaying RGB lighting effects.
- The magnetic filter on the top vents being easily remove for cleaning.
- Use the fan cable to create more possibilities for adding more fans to your system.
- Click through the profile at ease and choose a favorite.
- Built-in ARGB fans with striking lighting and vivid lighting effects.
- Through the LED Switch button can intuitively control & switch 9 lighting effects.

MESH CERTIFIED MAKES IT WORK

The front mesh panel allows air to flow into the case easily without obstruction, providing the best system cooling performance. The micro-atx chassis provide small footprint but big performance.

HEAT DISSIPATION

You don't need to worry about system cooling with the help of the gaming cases.

OPTIMIZED AIRFLOW
The MAG FORGE M100 Series is optimized to provide generous and effective airflow for system cooling. The MAG FORGE M100 Series can mount up to 6 fans.

COMPONENTS CLEARANCE

HARDWARE COMPATIBILITY

The gaming cases offers extensive support for the installation of your hardware components.

STORAGE YOU NEED
Configure your own storage layout and install up to 3x2.5" 1x3.5" or 2x2.5" 2x3.5" storages.

MOTHERBOARD SUPPORT

EASY TO INSTALL

The gaming case has many features that make the installation process all the easier.

1 TO 6 ARGB CONTROL BOARD
User can intuitively control & switch 9 lighting effects through the LED switch button.

1-TO-4 FAN CABLE
Use the 1-to-4 Fan Cable to create more possibilities for adding more fans to your system.

FANCY APPEARANCE

Build and display the coolest PC with controllable ARGB lighting.

TEMPERED GLASS WINDOW
The 3mm tempered glass window offers the best durability and sytem accessibility.

INSTA-LIGHT LOOP BUTTON
Quickly control the fan and front LED strip's lighting effects with Insta-Light Loop at the touch of a button. Click through the profiles at ease and choose a favorite.

ARGB SHOWROOM
Create your own ARGB battle station with the MAG FORGE M100R, fully supported by MSI Mystic Light.

Connectable Front I/O

Specifications

Product Name

MAG FORGE M100R

Case Form Factor

Micro ATX Tower

Motherboard Form Factor Support

Micro-ATX / Mini-ITX

I/O Ports

2x USB 2.0 Type-A
1x USB 3.2 Gen 1 Type-A
1x Audio
1x Mic

Drive Mount Support

2x 2.5"
1x 2.5" / 3.5"
1x 3.5"

Expansion Slots

4

Maximum GPU Length

300 mm / 11.81 inches

Maximum CPU Cooler Height

160 mm / 6.3 inches

Power Supply Support

ATX

Maximum PSU Length

300 mm / 11.81 inches (without 3.5" HDD tray installed)

Fan Size Support

Front: 3 x 120 mm
Top: 2 x 120 mm
Rear:1 x 120 mm

Pre-installed Fan Size

Front: 3 x 120mm
Rear: 1 x 120mm

Pre-installed Fan Type

Front: 3 x ARGB Fan
Rear: 1 x ARGB Fan

Radiator Size Support

Front: 120 / 240 mm
Top: 120 / 240 mm
Rear: 120 mm

Dimensions (DxWxH)

388 x 200 x 423mm / 15.28 x 7.87 x 16.65 inches

Net Weight

4.14 kg / 9.13 lbs

Gross Weight

5.03 kg / 11.09 lbs

Connection

Power Button
Reset Button
Mic in / Audio out
2x USB 2.0 Type-A
1x USB 3.2 Gen 1 Type-A
LED Switch Button
