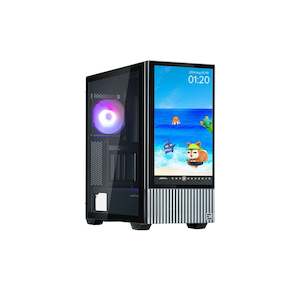

Zalman Z10 DS ATX Black Mid Tower Case

I/O Ports 1xHeadphones, 1xMIC, 2xUSB3.0, 1xUSB Type-C, Reset button, LED Button, Power Button, Display (Mini-HDMI, USB Type-C)

Renowned Z10

Big Screen Monitor

Case Display

Angle-Adjustable Display Panel

15.6-Inch Full HD Display & Monitor Stand Included

Optimal Air Flow with Clean,

Modern Front Bezel Design

A front bezel is provided

when the display is being used as

a standalone monitor

Premium Tempered Glass

4mm-Thick Tempered Glass with

Hand-Screws for Easy On-and-Off

Functional I/O Port

ⓐ Power

ⓑ Reset

ⓒ HDD / Power LED

ⓓ Headphone Jack

ⓔ Microphone Jack

ⓕ USB 3.0 ⓖ USB 3.1 Type-C

ⓗ LED Button

Magnetic Dust Filter (Top)

Sliding Dust Filter (Bottom)

Magnetic Dust Filter
(Side)

Multiple Holes and Spaces for

Easy Cable Management

※ 22mm Space for Cable Management

Vertical GPU & GPU Support Bracket

Vertical GPU Bracket Included (Left)

GPU Support Included (Right)

Excellent Expandability and Convenience

▶ CPU Cooler Maximum Height : 173mm ▶ VGA Card Maximum Length : 395mm

▶ PSU Maximum Length : 200mm ▶ Drive Bay : HDD x 2 / SSD x 4

Motherboard Support

ATX / mATX / Mini-ITX

GPU Support Bracket Included

with Height Adjustment

Slides up & down to position GPU Precisely

Pre-installed Fan x 3

Front : 2 x 120mm (Non LED)

Rear : 1 x 120mm(ARGB)

Radiator Support

Front : 120mm / 140mm / 240mm / 280mm / 360mm

Top : 120mm / 140mm / 240mm / 280mm / 360mm

Rear : 120mm

Supports up to Max 11 Fans

Fan Support

Front : 3 x 120mm / 3 x 140mm

Top : 3 x 120mm / 2 x 140mm

Rear : 1 x 120mm

Bottom : 2 x 120mm

Side : 2 x 120mm

Pre-Installed

Front : 2 x 120mm

Rear : 1 x 120mm (ARGB)

① Rear Hand Screw

② Rear 120mm fan (Included)

③ Side Handle

④ PCI Slot x 7 & PCI Vertical Slot Bracket

⑤ PSU Slot

⑥ Rear Air Vent

Vertical GPU Bracket
