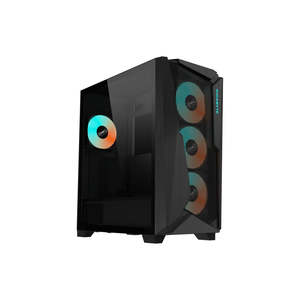

Gigabyte C301 Glass Black V2 ATX Mid Tower Case

- Optimized Airflow Design
- RGB Fusion with ARGB Connector Hub
- Support Motherboards up to E-ATX
- Up to 360mm Liquid Cooling Compatible
- Support Vertical GPU Installation
- Full-Size Tempered Glass Side Panel
- With USB 3.0 x2 and USB 3.1 Type-C x1 on I/O panel
- Pre-installed 4 ARGB fans

OPTIMIZED AIRFLOW DESIGN

The GIGABYTE C301 GLASS V2 comes with the large mesh front and the vented top panel, delivering generous airflow for optimized cooling with premium aesthetics.

RGB LIGHTING

Effortlessly switch modes with a press of a button using the RGB LED switch. Customize the LED further with up to 16.7 million vibrant colors and various lighting effects via software, transforming your PC into a personalized gaming rig.

The type of RGB lighting effect and software depends on the MB support.

1 - Single press RGB LED switch: Change the 13 RGB effects in order.
2 - Press and hold the RGB LED switch for 3-6 seconds: Sync the motherboard's RGB lighting after the switch flashes in white. Then, press and hold for 3-6s again, and the RGB behavior comes back to 1.
3 - Press and hold the RGB LED switch for over 6 seconds: Turn Off the RGB lighting after the switch flashes in white.

ARGB CONNECTOR HUB

The built-in ARGB connector hub is equipped with six 5V 3-pin connectors, enabling users to expand their RGB light stripes, create a superb cooling system as well as a fantastic and gorgeous rig.

MAX COMPATIBILITY

The GIGABYTE C301 GLASS V2 can fit up to E-ATX motherboards, up to seven 120mm fan support, and up to 360mm radiator, providing users with the upmost flexibility.

Vertical GPU Installation
Provide a vertical holder kit which can support 100mm (5 slot) card thickness for installation.

Dimensions

Fan system

Radiator system

Drive Bays

TEMPERED GLASS SIDE PANEL

Built with 4mm black tempered glass on side panel, GIGABYTE C301 GLASS V2 is an attractive, versatile chassis that can be a stunning showpiece for your PC parts. The non-drilled glass design effectively reduces the risk of fragmentation, allowing users to remove it with ease and safety, also extending the product lifespan.

PSU SHROUD DESIGN

Enjoy a clean look by hiding the PSU and those messy power cables inside the PSU shroud, while separating the PSU heat from the rest of the internal system. With the window design on the left side of the shroud, users can show off the cool outlook of PSU.

DETACHABLE DUST FILTER

The filters keep your PC from accumulating dust, while maintaining optimal cooling performance. The top magnetic filter, along with the removable filter at the bottom, make maintenance easy.

I/O PANEL

Equipped with a USB 3.1 Type-C port, two USB 3.0 ports, audio ports and a RGB LED switch and a power button

Specifications

Case Form Factor

Mid Tower

M/B Type

Mini ITX / Micro ATX / ATX / E-ATX

Color

Black

Materials

Steel, Plastic, Glass

Dimensions

H=486 W=220 D=473 mm (Within ± 1% error)

Expansion slots

7

5.25" Drive Bays

None

3.5"/2.5" Drive Bays

2

2.5" Drive Bays

2

I/O Panel

USB 3.1 Gen2 Type-C x1/ USB 3.0 x2 / Audio In & Out (supports HD Audio) / LED Switch

Pre-installed Fan

Front : 120mm x3 (ARGB & PWM)
Rear : 120mm x1 (ARGB & PWM)
Fan splitter cable included

Fan Support

Front : 120mm x3 / 140mm x3
Top : 120mm x3 / 140mm x2
Rear : 120mm x1

Radiator Support

Front : Max 360mm
Top : Max 360mm
Rear : Max 120mm

Power Supply Type

Standard ATX (Not included)

Maximum Compatibility

CPU Height : 170mm
GPU Length : 400mm
PSU Length : 180mm

Vertical GPU Mount

Yes (VGA holder bracket: 100mm total clearance)
Requires P
