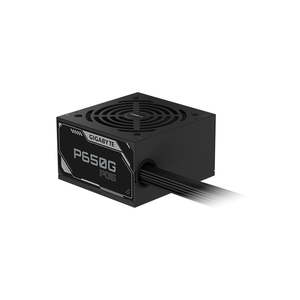

Gigabyte GP-P650G PG5 650W 80Plus Gold ATX 3.1 PSU

- ATX 3.1 and PCIe Gen 5.1 ready
- 80 PLUS Gold certified
- Main Japanese capacitors
- 120mm Silent Hydraulic Bearing (HYB) Fan
- Powerful single 12V rail
- OVP/OPP/SCP/UVP/OCP/OTP protection
- Compact design

ATX 3.1 and PCIe Gen 5.1 Ready

Designed to meet the demands of next-gen systems, this ATX 3.1 compliant PSU handles up to 3× GPU and 2× system power excursions with 70% efficiency at low loads. The high-performance native 16-pin cable delivers up to 300W for PCIe Gen 5 graphics cards, such as the GeForce RTX™ 50 Series and beyond.

80 PLUS GOLD CERTIFIED

Achieving 90% efficiency at a 50% load, this 80 PLUS Gold certified PSU reduces power loss, minimizes heat generation, and lowers fan noise, ensuring both performance and energy savings.

HIGH QUALITY JAPANESE CAPACITORS

The primary capacitors are sourced from top-tier Japanese manufacturers, delivering a premium and stable power supply that effectively extends the product's lifespan.

120MM SILENT HYDRAULIC BEARING (HYB) FAN

The 120mm fan detects the current power utilization and temperature, automatically adjusting its rotational speed to minimize noise.The Hydraulic Bearing fan offers a longer and more stable lifespan in comparison to traditional sleeve fan.

SINGLE 12V RAIL

The single 12V rail delivers optimal power output, stability, and hardware compatibility. This design not only simplifies power cable installation but also stands as the most effective choice for overclocking purposes.

COMPREHENSIVE PROTECTION

Equipped with multiple protection features, this PSU ensures the stable operation of your system, backed by safety certifications from various countries for added peace of mind.

COMPACT DESIGN

Thanks to advanced thermal solutions and premium materials, the PSU features a compact size that fits easily into most chassis, maximizing both power and space efficiency.

SOFT-TEXTURED EMBOSSED CABLES

The soft-textured, embossed cables reduce friction, preventing wear and tear while keeping your build tidy. The unique patterns add an aesthetic touch and enhance durability, ensuring a clean and long-lasting cable experience.

Specifications

Model

GP-P650G PG5

Type

Intel Form Factor ATX 12V v3.1

PFC

Active PFC (>0.9 typical)

Input Voltage

100-240 Vac

Input Current

10-6A

Input Frequency

60-50 Hz

Output Capacity

650W

Dimensions

150 x 140 x 86 mm

Fan Type

120mm HYB Fan

80 PLUS

Gold

Efficiency

90% at typical load

MTBF

>100,000 hours

Protections

OVP/OPP/SCP/UVP/OCP/OTP

Power Good Signal

100-150ms

Hold Up Time

>17ms

Cable Type

Embossed, All black

Connectors

ATX/MB 20 4 Pin x 1 : 600mm 1
CPU/EPS 4 4 Pin x 1 : 600mm 150mm 1
PCI-e 16 Pin x 1: 500mm 1
PCI-e 6 2 Pin x 2 : 500mm 150mm 1
SATA x 6 : 420mm 150mm 150mm 2
4 Pin Peripheral x 3 : 420mm 150mm 150mm 1
