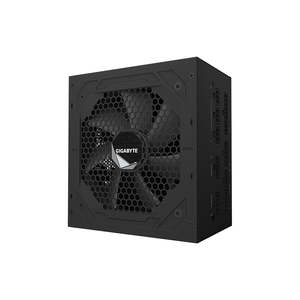

Gigabyte UD1000GM 1000W 80Plus Gold Fully Modular ATX 3.0 Power Supply
10 Year Limited Warranty
Ultra Durable
Main Japanese capacitors
Enhanced thermal solution
120mm smart hydraulic bearing (HYB) fan
OVP/OPP/SCP/UVP/OCP/OTP protection
Support PCIe Gen 5.0 graphics cards
Support Intel ATX 3.0 standard
80 PLUS Gold certified
Fully modular design
Compact design
10 years warranty (Adjusted according to different regions) Support PCIe Gen 5.0 graphics cards
The UD1000GM PCIE 5.0 has a 16-pin connector and comes with a high-quality native 16-pin cable that allows you to use the PSU with a PCIe Gen 5.0 graphics card. This cable can support up to 600 watts of power to the graphics card. Support Intel ATX 3.0 standard
The UD1000GM PG5 can sustain up to 3x GPU power excursion and 2x total power excursion. It is fully compatible with Intel PSDG (Power Supply Design Guide) ATX 3.0 standard which supports up to 200% power excursion, reaches 70% low load efficiency and complies with required power supply timing standards. ULTRA DURABLE
Inherit the product design spirit of GIGABYTE Ultra Durable, thus introducing a variety of high-quality materials and designs. Ultra Durable combines high-quality main Japanese capacitors, enhanced thermal solution, 120mm smart hydraulic bearing (HYB) fan, and six circuit protection designs. It provides consumers with a high-quality and stable power supply, and can be used for a long time. ENHANCED THERMAL SOLUTION
Compared with the standard thermal solution, we have enlarged the heatsink by about 200% or more, and optimized the airflow. The heat dissipation performance is increased by more than 10%, thus prolonging the service life of the components. 120MM SMART HYDRAULIC BEARING (HYB) FAN
The fan speed is adjusted according to the automatic power detection and stops when the system is idle or under low load (less than 20% load). The hydraulic bearing fan provides longer and more stable life time. PROTECTION
In order to make sure the entire computer system to operate stably under any conditions, we not only added protection designs such as OCP, OTP, OVP, OPP, UVP and SCP, but also ensured the stable operation of your system through the safety certification of various countries. FULLY MODULAR DESIGN
All the black flat cables are modular design. Installing only the cables you need to reduce clutter, to increase the airflow and to improve the chassis thermal performance. 80 PLUS GOLD CERTIFIED
80 Plus Gold certified ensures to deliver 90% efficiency at 50% load. The better power efficiency leads to less power waste, less heat and less fan noise. PLENTIFUL POWER SUPPLY
The 12VHPWR and the 12V can provide a total of 1000W power output. The 12VHPWR can provide up to 600W for the latest PCIe Gen 5.0 graphics card. COMPACT DESIGN
With the help of engineers' excellent design capabilities and heat dissipation technology on various hardware products, and the use of higher quality materials, GIGABYTE has reduced the length of the power supply to an amazing 140 mm, so it can be easily installed in any chassis without space constraints.
- Model
- GP-UD1000GM PG5
- Type
- Intel Form Factor ATX 12V v3.0
- PFC
- Active PFC (>0.9 typical)
- Input Voltage
- 100-240 Vac (full range)
- Input Current
- 15-6.5A
- Input Frequency
- 60-50 Hz
- Output Capacity
- 1000W
- Dimensions
- 150 x 140 x 86 mm
- Fan Type
- 120mm Hydraulic Bearing(HYB)fan
- 80 PLUS
- Gold
- Efficiency
- 90% at typical load
- MTBF
- >100,000 hours
- Protections
- OVP/OPP/SCP/UVP/OCP/OTP
- Power Good Signal
- 100-150ms
- Hold Up Time
- >16ms
- Cable Type
- Flat, All black
- Connectors
- ATX/MB 20 4 Pin x 1 : 610mm 1
CPU/EPS 4 4 Pin x 2 : 600mm 200mm 1
PCI-e 16 Pin x 1: 700mm 1
PCI-e 6 2 Pin x 4 : 600mm 150mm 2
SATA x 8 :
600mm 150mm 150mm 150mm 2
4 Pin Peripheral x 3 4-Pin floppy x 1 : 500mm 120mm 120mm 150mm 1
