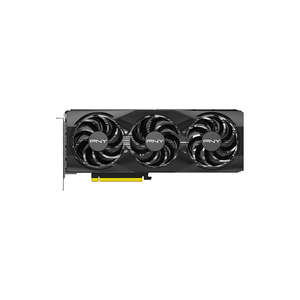

PNY NVIDIA GeForce RTX 5070 OC 12GB GDDR7 Graphics Card
Get game-changing performance with the GeForce RTX™ 5070, powered by NVIDIA® Blackwell. Game at high frame rates with DLSS 4, supercharge your creativity with NVIDIA Studio, and enable new experiences with the power of AI.
- NVIDIA Blackwell Architecture
- 12GB GDDR7 Memory
- 3x Display Port, 1x HDMI®
- 6,144 CUDA® Cores
- 250 W Thermal Design Power NVIDIA Blackwell Architecture
The Ultimate Platform for Gamers and Creators
Fifth-Gen Tensor Cores
Max Al performance with FP4 and DLSS
New Streaming Multiprocessors
Optimized for neural shaders
Fourth-Gen Ray Tracing Cores
Built for Mega Geometry
Game Changer
Powered by NVIDIA Blackwell, GeForce RTX™ 50 Series GPUs bring game-changing capabilities to gamers and creators. Equipped with a massive level of AI horsepower, the RTX 50 Series enables new experiences and next-level graphics fidelity. Multiply performance with NVIDIA DLSS 4, generate images at unprecedented speed, and unleash your creativity with NVIDIA Studio.
AI-Enhanced Graphics and Performance
NVIDIA DLSS 4 with Multi Frame Generation Game-Winning Responsiveness
NVIDIA Reflex 2 with Frame Warp True-to-Life Graphics
Full ray tracing with neural rendering Digital Humans and AI Assistants
NVIDIA ACE Accelerate Your Creativity
NVIDIA Studio creator tools and technology Enhance Any Video with AI
NVIDIA Broadcast and ninth-gen NVIDIA Encoder Performance and Reliability
NVIDIA app with Game Ready and Studio Drivers The Ultimate Gaming Display Technologies
NVIDIA G-SYNC Specifications
PNY Part Number
VCG507012TFXPB1
Architecture
Blackwell
CUDA® Cores
6,144
Base Clock Speed
2.16 GHz
Memory Speed (Gbps)
28
Memory Size
12GB GDDR7
Memory Interface
192-bit
Memory Bandwidth (GB/sec)
Up to 672
TDP
250 W
NVLink
Not Supported
Outputs
DisplayPort 2.1b (x3), HDMI® 2.1b
Multi-Screen
4
Resolution
4K at 480Hz or 8K at 165Hz with DSC
Up to 4K 12-bit HDR at 480Hz with DP 2.1b DSC or HDMI® 2.1b DSC. Up to 8K 12-bit HDR at 165Hz with DP 2.1b DSC. Up to 8K 12-bit HDR at 120Hz with HDMI® 2.1b DSC. With dual DP 2.1b DSC, up to 8K HDR at 100Hz
Power Input
One 16-pin (One 16-pin to Two 8-pin)
Bus Type
PCI-Express 5.0 x16
Card Dimensions
11.80" x 4.73" x1.9"; 2.4 Slot (~300 x ~121 x ~49 mm)
System Requirements
PCI Express-compliant motherboard with one 2.4-width x16 graphics slot
Two 8-pin supplementary power connectors
Total graphics power 250 W
Required system power 650 W
Microsoft Windows® 11 64-bit, Windows 10 (November 2018 or later) 64-bit, Linux 64-bit
Internet connection
Graphics Card driver is not included in the box; NVIDIA App will download the latest GeForce driver from the Internet after install.
Power requirements can be different depending on system configuration.
