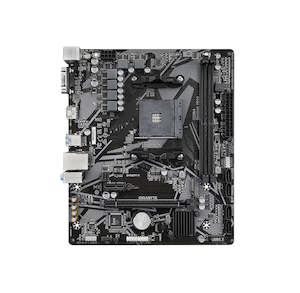

Gigabyte B450M K mATX Motherboard

3 Year Limited Warranty
AMD B450 Ultra Durable Motherboard with GbE LAN and Bandwidth Management, ​PCIe Gen3 x4 M.2, Anti-Sulfur Resistor Design​

- Supports AMD Ryzen™ 5000 series / Ryzen™ 5000 G-Series/ 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 1st Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ 1st Gen Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors​
- Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs​
- PCIe Gen3 x4 M.2 with PCIe NVMe & SATA mode support​
- GbE LAN with Bandwidth Management​
- 8-Channel HD Audio with High Quality Audio Capacitors​
- Smart Fan 5 features 5 Temperature Sensors and 2 Hybrid Fan Headers​
- GIGABYTE APP Center, Simple and Easy Use​

Specifications:

- CPU
- AMD Socket AM4, support for: AMD Ryzenâ„¢ 5000 Series Processors/ AMD Ryzenâ„¢ 5000 G-Series Processors/ AMD Ryzenâ„¢ 4000 G-Series Processors/ 3rd Generation AMD Ryzenâ„¢ processors/ 2nd Generation AMD Ryzenâ„¢ processors/ 1st Generation AMD Ryzenâ„¢ processors/ 2nd Generation Ryzenâ„¢ with Radeonâ„¢ Vega Graphics processors/ 1st Generation Ryzenâ„¢ with Radeonâ„¢ Vega Graphics processors/ Athlonâ„¢ with Radeonâ„¢ Vega Graphics Processors (Please refer "CPU Support List" for more information.)
- Chipset
- AMD B450
- Memory
- Support for DDR4 3600(O.C.)/3466(O.C.)/2933/2667/2400/2133 MHz memory modules
- 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
- Dual channel memory architecture
- Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
- Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
- Support for Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information.)
- Onboard Graphics Integrated Graphics Processor:
- 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
Support for HDMI 2.0 version, HDCP 2.2, and HDR. Maximum shared memory of 16 GB
- Audio
- Realtek® Audio CODEC
- High Definition Audio
- 2/4/5.1/7.1-channel
You can change the of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
- LAN
- Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
- Expansion Slots CPU:
- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 Chipset:
- 1 x PCI Express x1 slot, supporting PCIe 2.0 and running at x1
- Storage Interface CPU:
- 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD support) Chipset:
- 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10
- USB CPU:
- 4 x USB 3.2 Gen 1 ports on the back panel Chipset:
- 2 x USB 3.2 Gen 1 ports available through the internal USB header
- 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
- Internal I/O Connectors
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 1 x CPU fan header
- 1 x system fan header
- 1 x M.2 Socket 3 connector
- 4 x SATA 6Gb/s connectors
- 1 x front panel header
- 1 x front panel audio header
- 1 x USB 3.2 Gen 1 header
- 2 x USB 2.0/1.1 headers
- 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0 S module only)
- 1 x speaker header
- 1 x Clear CMOS jumper
- 1 x chassis intrusion header
- Back Panel Connectors
- 1 x PS/2 keyboard/mouse port
- 1 x D-Sub port
- 1 x HDMI port
- 4 x USB 3.2 Gen 1 ports
- 2 x USB 2.0/1.1 ports
- 1 x RJ-45 port
- 3 x audio jacks
- I/O Controller
- iTE® I/O Controller Chip
- H/W Monitoring
- Voltage detection
- Temperature detection
- Fan speed detection
- Fan fail warning
- Fan speed control
Whether the fan speed control function is supported will depend on the fan you install.
- BIOS
- 1 x 128 Mbit flash
- Use of licensed AMI UEFI BIOS
- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
- Unique Features
- Support for APP Center
Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
EasyTune
Smart Backup
System Information Viewer
- Support for Q-Flash
- Support for Xpress Install
- Bundled Software
- Norton® Â
