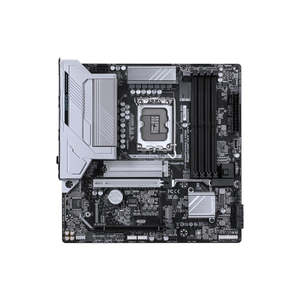

Gigabyte B860M GAMING X WIFI6E LGA1851 mATX Motherboard
- Supports Intel® Core™ Ultra processors (Series 2)
- Hybrid Digital 8 1 2 phases VRM solution
- D5 Bionic Corsa for Infinite Memory Performance
- AI Perfdrive : Provides optimal and customized BIOS preset profile for users
- WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
- EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design
- EZ-Latch Click : M.2 heatsinks with screwless design
- Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
- New Power Monitor in HWinfo for real-time monitoring on CPU power phases
- Ultra-Fast Storage : 2 M.2 slots, including 1 PCIe 5.0 x4
- Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard
- Fast Networking : 2.5GbE LAN & Wi-Fi 6E 802.11ax
- Extended Connectivity : USB4 Type-C with DP-Alt, HDMI, DisplayPort Infinite Memory Performance
Gaming motherboards boost DDR5 memory performance and offer top-notch compatibility using various advanced methods.
Steady Power
Better Play GAMING Series, steady power keeps your gaming smooth. Hybrid Digital VRM Design
Delivers consistent, high-powered performance to elevate your overclocking to the next level.
Comprehensive Thermal
GAMING motherboards come with advanced full-metal thermal design and durable heatsinks to keep your system cool and efficient. 4X larger surface area for enhanced heat dissipation
- With up to 4 times the surface area of traditional coolers, this advanced design significantly boosts MOSFET cooling performance. Multi-cut design with channels for improved airflow
- More grooves, more airflow.
- Better airflow, cooler system. True one-piece heatsink design
- Outperforms competitors' multi-piece solutions
- Integrated design and expanded surface area deliver exceptional cooling performance
M.2 Thermal Guard
The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue.
RL-ILM design
The RL-ILM (Reduced Load-independent loading mechanisms) significantly improves thermal performance up to 4°C and avoids possible bending of the CPU IHS (integrated heat spreader), allowing overclockers and enthusiasts to push their CPUs beyond the limit without any worries.
Smart Fan 6
Superior cooling performance and whisper-quiet operation for your gaming rig.
Hassle-free Assembly
Our cutting-edge motherboard is designed for the ultimate DIY experience. Creating your own PC becomes a delightful and smooth process.
Future Connectivity
Experience ultimate connectivity with next-generation network, storage, and Wi-Fi solutions, delivering lightning-fast data transfer speeds.
Born from Ultra Durable™
Technology embodies our commitment to excellence, providing gamers with a platform that's not only powerful but also built for longevity and reliability. GAMING series motherboards are engineered to endure and excel. Specifications
CPU
LGA1851 socket: Support for Intel® Core™ Ultra Processors
(Go to GIGABYTE's website for the latest CPU support list.)
L3 cache varies with CPU
Chipset
Intel® B860 Express Chipset
Memory
Support for DDR5 9200(O.C)/ 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 5600 MT/s memory modules
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(The CPU andmemory configurationmay affect the supportedmemory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Onboard Graphics
Integrated Graphics Processor-Intel® HD Graphics support:
- 1 x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz
Support for DisplayPort 2.1 version.
- 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
Support for DisplayPort 2.1 version.
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
Support for HDMI 2.1 version and HDCP
