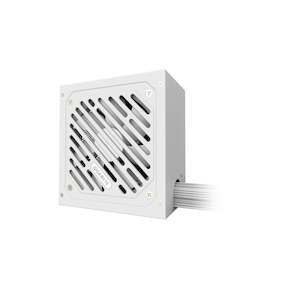

Gigabyte P650SS ICE 650W 80 Plus Silver ATX 3.0 PSU

- Ice white aesthetics
- 80 PLUS Silver certified (230V EU)
- Support Intel ATX 3.0 standard (compatible with ATX 3.1)
- 120mm Fluid Dynamic Bearing (FDB) Fan
- Flat cable design
- Powerful single 12V rail
- OVP/OPP/SCP/UVP/OCP/OTP protection
- 3 years warranty

Model
GP-P650SS ICE

Type
Intel Form Factor ATX 12V v3.0 (compatible with ATX 3.1)

PFC
Active PFC (>0.9 typical)

Input Voltage
155-240 Vac

Input Current
6.3A

Input Frequency
60-50 Hz

Output Capacity
650W

Dimension
150 x 140 x 86 mm

Fan Type
120mm Fluid Dynamic Bearing (FDB) fan

80 PLUS
Silver

Efficiency
90% at typical load (230V EU)

MTBF
>100,000 hours

Protection
OVP/OPP/SCP/UVP/OCP/OTP

Power Good Signal
100-150ms

Hold Up Time
>16ms

Cable Type
Flat, All white

Connectors
ATX/MB 20 4 Pin x 1 : 600mm 1
CPU/EPS 4 4 Pin x 2 : 650mm 120mm 1
PCI-e 6 2 Pin x 2 : 600mm 2
SATA x 3 4 Pin Peripheral x 1 : 500mm 120mm 120mm 120mm 1
SATA x 2 4 Pin Peripheral x 2 : 500mm 120mm 120mm 120mm 1
