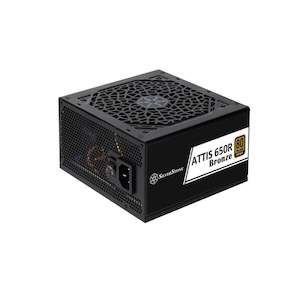

SilverStone ATTIS 650R 650W 80Plus Bronze ATX PSU

80 PLUS Bronze 650W ATX 3.1 ATX Power Supply

- Compliant with ATX 3.1 standards and supports up to 2X power excursion
- High efficiency with 80 PLUS Bronze certification
- 24/7 continuous power output with 50? operating temperature
- Japanese primary capacitor
- Silent running 120mm fan with 18 dBA minimum
- Multiple protection circuitry
- Flat cable design
- Active PFC Double forward DC to DC Design Compliant with ATX 3.1 standards and supports up to 2X power excursion

Bronze Efficiency Certified

Designed for 80 Plus Bronze level efficiency to minimize heat while considerably reducing electricity consumption.

High Reliability Cooling Fan

The cooling is entrusted to a 120mm fan that offers exceptional airflow and low operational-induced noise level.

Powerful single 12V rail design, perfect for future high-end component upgrades or overclocking

Flat cables have much greater flexibility to allow for tighter folding and management of cables

Advanced protections for safety and security

- Over power protection
- Over voltage protection
- Short circuit protection
- Under voltage protection

Connectors / Cable

Specifications

Product No.

SST-AT650R-BF (Black)

Model (safety certification)

SST-AX0650FCBR-A

Color

SST-AT650R-BF: Black (lead-free paint)

Max. DC Output

650W

Combined 3.3V & 5V

100W

Combined 12V

649.2W

Input Voltage

90 ~ 264 Vrms

Input Frequency Range

47Hz ~ 63Hz

PFC

Active PFC (PF>0.9 at full load)

Efficiency

82% ~ 85% (at 20% ~ 100% loading)

MTBF

100,000 hours

Operating temperature

0°C ~ 50°C

Protection

Over Power Protection
Over Voltage Protection
Short Circuit Protection
Under Voltage Protection

Connectors

1 x 24 / 20-Pin motherboard connector
2 x 4-Pin 4-Pin ATX 12V connectors
4 x 8 / 6-Pin PCIe connectors
6 x SATA connectors
3 x 4-Pin Peripheral connector

Cooling System

Silent 120mm fan

Noise Level

18 dBA minimum

Certification

80 PLUS Bronze

Form factor

ATX (PS2)

Dimension

150mm (W) × 86mm (H) × 140mm (D)
5.91" (W) x 3.39" (H) x 5.5" (D)

Weight

1.52 kg
