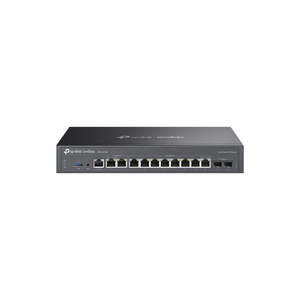

TP-Link Omada ER7412-M2 2.5G Multi-WAN VPN Gateway
- Quad-core @2.0GHz CPU
- 2× 2.5G RJ45 WAN/LAN ports
- 10× Gigabit WAN/LAN Ports (2× SFP, 8× RJ45)
- 1× USB 3.0 Port (Supports USB storage, and LTE backup with LTE dongle)
- Up to 11 WAN ports
- Multi-WAN Load Balancing raises the utilization rate of multi-line broadband
- High-security SSL/ IPSec / GRE§ / WireGuard / PPTP / L2TP VPN & OpenVPN
- Centralized cloud management via the web or the Omada app
- Standalone management via web, CLI, SNMP, and RMON
- DoS defense, IP/MAC/URL filtering, DPI, and IPS/IDS for enhanced security. Specifications
SECURITY
Access Control
- Source/Destination IP-Based ACL
- Stateful ACL
- IPv4/IPv6 ACL
- National Based ACL
Filtering
- WEB Group Filtering§
- URL Filtering
- Web Security§
ARP Inspection
- Sending GARP Packets§
- ARP Scanning§
- IP-MAC Binding§
Attack Defense
- TCP/UDP/ICMP Flood Defense
- Block TCP Scan (Stealth FIN/Xmas/Null)
- Block Ping from WAN
HARDWARE FEATURES
Standards and Protocols
- IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE802.1q
- TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, WireGuard VPN, GRE VPN, SNMP
Interface
- 1× 2.5G RJ45 WAN/LAN Port
- 1× 2.5G RJ45 WAN/LAN Port
- 2× Gigabit SFP WAN/LAN Ports
- 8× Gigabit RJ45 WAN/LAN Ports
- 1× RJ45 Console Port
- 1× USB 3.0 Port (Supports USB storage, and LTE backup with LTE dongle)
Network Media
- 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100O STP (Max 100 m)
- 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100O STP (Max 100 m)
- 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)
- 2500BASE-T: UTP category 5e, 6 cable (Max 100 m)
Button
Reset Button
Power Supply
100-240 VAC, 50/60 Hz
Flash
128MB NAND
DRAM
1 GB DDR4
Dimensions ( W x D x H )
11.6×7.1×1.7 in (294×180×44 mm)
Protection
4 kV surge protection
Enclosure
Steel
Mounting
- Desktop
- Rackmountable
Max Power Consumption
18.5W (With USB 3.0 connected)
PERFORMANCE
GRE
- Unencrypted: 1153.0 Mbps
- Encrypted: 559.2 Mbps
WireGuard VPN
771.6 Mbps
Concurrent Session
1,000,000
New Sessions /Second
7,000
NAT (Static IP)
2345.71 Mbps / 2351.22 Mbps
NAT(DHCP)
2353.41 Mbps / 2353.40 Mbps
NAT(PPPoE)
2336.52 Mbps / 2336.08 Mbps
NAT (L2TP)
1937.53 Mbps / 1761.82 Mbps
NAT (PPTP)
1757.54 Mbps / 2011.33 Mbps
IPsec VPN Throughput
- ESP-SHA1-AES256: 1125.60 Mbps
- ESP-SHA256-AES256: 1133.1 Mbps
- ESP-SHA384-AES256: 1126.6 Mbps
- ESP-SHA512-AES256: 1132.8 Mbps
OpenVPN
UDP: 266.2 Mbps
L2TP VPN Throughput
- Unencrypted: 2724.5 Mbps
- Encrypted: 1018.4Mbps
PPTP VPN Throughput
- Unencrypted: 3035 Mbps
- Encrypted: 534.6 Mbps
SSL VPN Throughput
263.1 Mbps
66 Byte Packet forwarding rate
1833 Mbps / 1835 Mbps
1,518 Byte Packet forwarding rate
2461 Mbps / 2461 Mbps
BASIC FUNCTIONS
WAN Connection Type
- Static IP/Dynamic IP
- PPPoE (supports MRU Configuration)
- PPTP
- L2TP
- Mobile Broadband: 4G/3G modem for backup via USB port
MAC Clone
Modify WAN/LAN MAC Address†
DHCP
- DHCP Server
- DHCPv6 PD Server (only in Standalone Mode)
- DHCP Options Customization
- DHCP Address Reservation
- Multi-IP Interfaces
- Multi-Net DHCP
IPv6
StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode
VLAN
802.1Q VLAN
IPTV
IGMP v2/v3 Proxy, Custom Mode, Bridge Mode
ADVANCED FUNCTIONS
Advanced Routing
- Static Routing
- Policy Routing
- RIP (available in Standalone Mode)
- OSPF (available in Standalone Mode)
Bandwidth Control
IP/Port-based Bandwidth Control
Load Balance
- Intelligent Load
