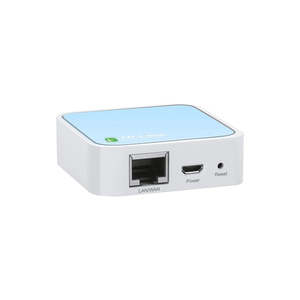

TP-Link TL-WR802N N300 WiFi 4 Nano Router

- 300Mbps wireless data rates is ideal for video streaming, online gaming and Internet calling
- Pocket-size - Ideal for home and travel use
- Supports Router, Repeater, Client, AP and hotspot operation modes
- Powered through a micro USB port by an external power adapter or USB connection to a computer provides flexibility for any situation
- Easy installation in minutes
What is the TL-WR802N?
The TL-WR802N is designed for use with tablets, smart phones, handheld game consoles and other portable electronic wireless devices. The devices, which can be powered by an external power adapter or USB connection to a computer, can conveniently connect to the Internet and share the connection around an average sized room at 300Mbps. The device's tiny size makes it ideal for use on the road and is powerful enough to satisfy almost any basic wireless application requirement.
Portable and Compact - Ideal for Home and Travel Use
The TL-WR802N is the perfect travel companion for anyone who needs fast, easy Internet access on the go. Portable and compact design easily fits into a pocket or the palm of your hand. Simply plug a hotel room's ethernet cable into the port provided and enter a default password to instantly create a wireless hotspot in the room.
Flexible Power Supply - Easy to Take on the Road
TL-WR802N can be powered by an external power adapter or via a USB connection to a computer. When traveling, users can plug the TL-WR802N into computer's USB port and share Wi-Fi connection with family and friends.
Multiple Operation Modes
TL-WR802N supports Router (default), Repeater, Client, AP and WISP modes to enable various wireless applications to give users a more dynamic and comprehensive wireless networking experience.
WPA / WPA2 Encryptions
WPA/WPA2 encryption standards ensure your wireless connection is safe from intruders.

WIRELESS Standards and Protocols Wi-Fi 4
IEEE 802.11n/b/g 2.4 GHz WiFi Speeds N300
2.4 GHz: 300 Mbps (802.11n) WiFi Range 2 Bedroom Houses 2× Fixed Antennas WiFi Capacity Legacy Working Modes Router Mode
Access Point Mode
Range Extender Mode
Client Mode
Hotspot Mode (WISP Mode)

SECURITY Network Security SPI Firewall
Access Control
IP & MAC Binding
Application Layer Gateway Guest Network 1× 2.4 GHz Guest Network WiFi Encryption WEP
WPA
WPA2
WPA/WPA2-Enterprise (802.1x)
Only Available in the Router and AP Modes.

HARDWARE Processor Single-Core CPU Ethernet Ports 1× 10/100 Mbps WAN/LAN Port Buttons Reset Button Power 5 V ⎓ 1 A

SOFTWARE Protocols IPv4
IPv6 Parental Controls URL Filtering
Time Controls WAN Types Dynamic IP
Static IP
PPPoE
PPTP
L2TP Quality of Service QoS by Device NAT Forwarding Virtual Server
Port Forwarding
Port Triggering
DMZ
UPnP IPTV IGMP Proxy DHCP Address Reservation
DHCP Client List
Server DDNS NO-IP
Comex
DynDNS Management Features Tether App
Webpage
Check Web Emulator>

OTHER Network Services Enabled by Default Web Server
Manage and configure device through web (HTTP/HTTPS)
• Port: 80/443   Protocol: TCP
DHCP Server
IP address assignment (DHCP)
• Port: 67   Protocol: UDP
App management
Manage and configure device through app
• Port: 20001   Protocol: TCP
• Port: 20002   Protocol: UDP
System Requirements Internet Explorer 11 , Firefox 12.0 , Chrome 20.0 , Safari 4.0 , or other JavaScript-enabled browser
Cable or DSL Modem (if needed)
Subscription with an internet service provider (for internet access) Certifications FCC Environment Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

TEST DATA WiFi Transmission Power FCC:
