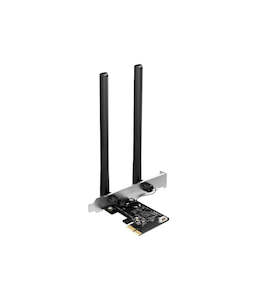

Mercusys AC1200 WIFI + Bluetooth 5.0 PCIe Adapter

MA30E
AC1200 Wi-Fi Bluetooth PCIe Adapter
Strong Dual Band Wi-Fi Speed — Speeds up to 867 Mbps (5 GHz) 300 Mbps (2.4 GHz)1

Wider Signal Coverage — Two high-performance antennas

Bluetooth 5.0 — The Bluetooth 5.0 technology achieves faster speeds and broader coverage2

MU-MIMO — Simultaneously serve several devices with no more latency or bandwidth congestion3

Improved Security — The latest security enhancement, WPA3, provides enhanced protection in personal password safety4

Backward Compatibility — Full support for 802.11ac/a/b/g/n standards

Windows Compatible — Supported operating system: Windows 10, 11 (64 bit)

Please note: MA30E is not compatible with the low-profile bracket because of the fixed antennas.

Wireless Wireless Standards

IEEE 802.11 a/n/ac 5 GHz
IEEE 802.11 b/g/n 2.4 GHz

Signal Rate

867 Mbps on 5 GHz
300 Mbps on 2.4 GHz

Reception Sensitivity

5 GHz:
11a 54Mbps: -77 dBm
11ac VHT80 MCS0: -92dBm
11ac VHT80 MCS9: -64dBm

2.4 GHz:
11g 54Mbps: -76 dBm
11n HT40 MCS7: -72dBm

Wireless Security

WPA-PSK/WPA2-PSK/WPA3-SAE Hardware Dimensions (W X D X H)

8.9 × 4.8 × 0.85 in (226.3 × 120.8× 21.5 mm)

Antenna Type

2× Fixed High-Performance Omni-Directional Antennas Others Package Contents

AC1200 Wi-Fi Bluetooth 5.0 PCIe Adapter (MA30E)
Bluetooth Header Cable
Quick Installation Guide
Resource CD

Environment

Operating Temperature: 0°C~40°C (32°F~104°F)
Operating Humidity: 10%~90% Non-Condensing
Storage Humidity: 5%~90% Non-Condensing

System Requirements

Supported operating systems include Windows 10, 11(64-bit)
