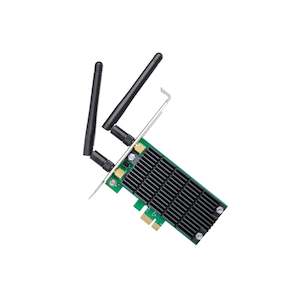

TP-Link Archer T4E (AC1200) Dual-Band WiFi 5 PCIe Wireless Adapter

Dual Band Wi-Fi for Faster Connections (802.11ac)

TP-LINK's Archer T4E supports the advanced Wi-Fi standard of IEEE 802.11ac, offering 3 times transferring rates as IEEE 802.11n. You can send emails and the web with 2.4GHz network, while keeping the speedy 5GHz band free for gaming, HD streaming and other bandwidth intensive applications.

Greater Coverage with Beamforming

Beamforming technology smartly focuses Wi-Fi signals towards connected devices for stable connections and boosted range.

Heat Sink for Ultimate Stability

A heat sink helps to dissipate the thermal energy generated by the adapter, which in turn improves stability. Additionally, lower temperatures help to extend the product lifespan.

External Antennas for More Targeted signal

Two external antennas utilize the latest wireless technology to achieve stable connections and boosted coverage. Specifications

Hardware Features

Interface

PCI Express

Dimensions ( W x D x H )

120.8 115.2 21.5 mm

Antenna Type

2 Dual Band Detachable Antennas

Wireless Features

Wireless Standards

IEEE 802.11ac/n/a 5 GHz
IEEE 802.11n/g/b 2.4 GHz

Signal Rate

Transmit Power

5 GHz : 24 dBm(FCC) / 23dBm(CE) (EIRP)
2.4 GHz : 25 dBm(FCC) / 20dBm(CE) (EIRP)

Wireless Modes

Infrastructure mode

Wireless Security

Support 64/128 bit WEP, WPA/WAP2, WPA-PSK/WPA2-PSK, 802.1x

Modulation Technology

DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM

Others

Certification
CE, FCC, RoHS

Package Contents

AC1200 Wireless Dual Band PCI Express Adapter Archer T4E
Low-Profile Bracket
Quick Installation Guide
Resource CD

System Requirements

Windows 10/8.1/8/7/XP (32/64bit)

Environment

Operating Temperature

0?~40? (32?~104?)

Storage Temperature

-40?~70? (-40?~158?)

Operating Humidity

10%~90% non-condensing

Storage Humidity

5%~90% non-condensing
