SS Create+ 25l Boiler

The Create 25l Boiler is the recommended boiler base for use with the Create T500 Column & Condenser and the Create Alembic Copper Dome & Condenser.

With a maximum capacity of 25 litres, the Create 25l Boiler is designed for distillers seeking precise control and versatile functionality. It features dual element control switches to provide more control during distillation.

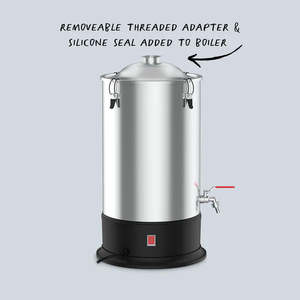

The Create 25l Boiler comes complete with a 2" tri-clamp to DN40 threaded adapter, allowing for connection to 2" tri-clamp accessories, so you can experiment with different setups and attachments.

Key Features:

- Dual element control switches provide more control during distillation
- When both switches are in the ON position, the element will be supplied full power of 2200W
- When one switch is in the OFF position, it will only consume 1100W
- Designed in New Zealand
- Boil dry reset
- Thermal cut out fuse
- Waste discharge tap with a stainless-steel ball valve
- Boiler lid with 48 mm opening
- 25 L Boiler capacity
- Connects to 2" tri-clamp distilling accessories
- 304 grade sainless steel construction
- High temperature resistent food grade silicone

NOTE: The Threaded Adapter is designed primarily for small to medium-sized distilling setups that do not have heavy, off-centre attachments. When used with the Still Spirits Boiler 25 L lid or Alembic Dome, it is reasonably flexible and is sturdy enough to fit components within the following specifications:

A total column & condenser height up to 1.1 m (3.6 ft) from the boiler lid or dome.

A total column & condenser weight up to 11 kg (24 lbs), including uop to 2 kg lbs) off-centre weight from a swan neck, lyne arm, or condenser running in parallel with the column and offset up to 160 mm (6") to the main column.

The Create Threaded Adapter Set is only suitable for use with Still Spirits Alembic Copper Condensers sold from 2019 onwards.
