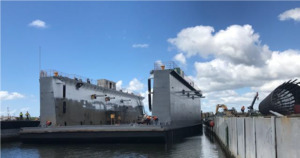

Floating Dock Suitable for 1000T docked Vessel (up to 55m LOA docked vessel)

AU M plus Aust gst if applicable SKU: 4013 Category: Work Vessels Send an enquiry × Enquiry about

Enter your name Enter your email Enter your phone number Enter your message Security Code 59T7ZP19

Enter the security code shown above Close Send

LOA 6m x Beam 19.81m x Draft 2.39m.

Built by Morts dock, Balmain, Sydney

Operating Draft 2.39m, Maximum draft 7.04m

This dry dock requires approx 8m water depth

The floating dock consists of a barge shaped steel hull and a wing section at both sides of the dock. These are supported by primary structures which consist of shell plating. Longitudinal bulkheads, transverse bulkheads and transverse open frames. The vessels hull and main decks have recently been replaced – deck steel thickness is 12mm with 16mm down the centre-line x 2.5m wide. Depth of sides 7.77m, depth overall 10.52m

Dock vessel max weight – 1000 tons. Designed lift capacity 1000 tons.

2020-2021 upgrades – Virtually the whole of the or...
