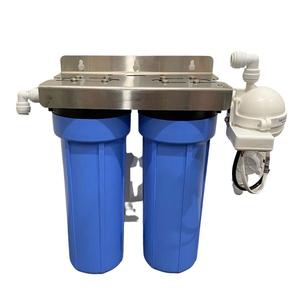

LED UV Tap Filter System - Off Grid or 240v Mercury Free
Model PearlAqua OEM 12C Gen #2
The PearlAqua Micro Automate is the world's smallest UV disinfection system, making it ideal for installation under sink in homes, caravans, camper trailers, or RVs
- DC input power means solar power is possible too Benefits
- Long Life - approx 10,000 hours LED lifespan
- 99.99% pathogen reduction
- Automates on/off function
- Perfect for small spaces - worlds smallest
- No harmful chemicals or mercury-based UV lamps
- Visual feedback Display
- NSF 55 Class B Flowrate
- Easy to install
- Reduced environmental impact
The PearlAqua LED system can be turned on/off an infinite number of times per day, so the unit only runs when water is flowing through it, greatly extending the lamp replacement interval. For example, a PearlAqua unit that is on for 2 hours a day will only need replacing every 10-12 years! The whole system then must be replaced. Includes
- PearlAqua OEM 12C Gen #2
- PAQ1015-Automate integrated flow sensor and bracket
- PP1997 1.5m cable with DC plug or the 240v 12 volt adapter
- Dual filters 10" standard sediment and GAC radial flow filters.
Other components will be required to enable connection to you water supply and tap Specifications
- Max Flow 8lpm = dose10 mJ/cm2 - 5lpm = dose 16mJ/cm2 - 2.25lpm = 40 mJ/cm2
- Head loss at max flow 13psi
- Inlet & outlet water connection 3/8", 1/2" other
- Connect with Quick Connect fittings or similar
- Max Operating Pressure 120psi
- Environment protection IP68
- Lamp Life up to 10,000 hours
- Fluid temp 0-45degc
- 250-300Nm Wavelength
- Electrical connection 4 core cable, 150mm Length
- Input voltage 12 volts DC (ideal for solar or off the grid, motorhomes, boats)
- Input power usage 9-14 watts ( Input power means the actual total power used by the LED during operation, expressed in watts)
Compliance
- NSF/ANSI 55:2019
- WaterMark (AS/NZS 3497).
Dimensions:
- 113mm High
- 63mm diameter
Power Draw (note this unit is automatic and does not run until demand is required)
- Min Voltage =11.4 - Min current draw 740mA - Min Power draw = 10.3w
- Typical Voltage =12v - Typ current draw 1080mA - Typ Power draw = 12.9w
- Max Voltage =14v - Typ current draw 1560 mA - Typ Power draw = 17.7w
Warranty
When installing this system, it is essential to use a prefilter. This will prolong the lifespan of the UV system and maintain warranty coverage of 12 months
