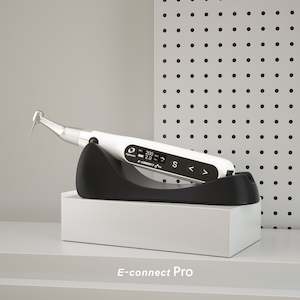

E-Connect Pro

E-CONNECT Pro is a characteristic-rich and cost proficient cordless endomotor. Quick and simple programmable modes for torque, speed, continuous rotation and reciprocation modes.

FEATURES

- Continuous Mode – 6 Memory Programs to set rotation speed, torque and direction
- Reciprocation Mode – 5 Modes with 4 forward and 1 reverse reciprocation
- Auto Torque Reverse – Reduces the risk of instrument separation inside the canal
- 340 degree Adjustable Head – Ease of working accessibility
- Miniature Head – Provides excellent visibility while working
- Ambidextrous – Adaptable for both left and right hand operations
- Torque Calibration – In-built with editable settings and torque reversal

FUNCTIONS ACTIVATED WHEN INTEGRATED WITH E-PEX PRO (APEX LOCATOR)

- Auto Start-Stop – Motor starts moving when the file enters the canal and stops when withdrawn
- Apical Reverse – When the file reaches a pre-set apical turn around point, user can classify whether the file starts moving in a reverse course
- Apical Slow Down – To preserve the apical stop and avoid file-separation, speed of motor slows down when the file is in close proximity to apical region
- Apical Torque Reduction – In addition to apical slow down, torque decrease at apical third prevents probability of file separation

TECHNICAL INFORMATION

- Model Number: E-CONNECT Pro
- Rotational Speed Range: 120-650 RPM
- Values: 120, 150, 200, 250, 300, 350, 400, 450, 500, 550, 600, 650
- Torque Range: 0.5 – 4.0 Ncm
- Values: 0.5,0.8,1.0,1.2,1.5,2.0,2.5,3.0,3.5,4.0
- Adaptor Working Voltage: AC 100-240v, 50/60 Hz
- Battery Capacity: 1500mAh CONTENTS

- E-CONNECT Pro Handpiece
- Data Transfer Cable
- Contra-angle
- Adaptor

DOWNLOAD BROCHURE

.pdf

E-Connect E-Pex Brochure.pdf
