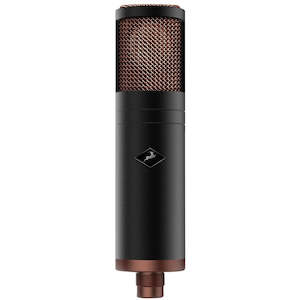

Antelope Audio Edge Duo

Edge Duo is a Large diaphragm condenser modeling microphone

Antelope’s unique mic modeling process starts with the Edge Duo microphone. An outstanding performer in its own right, this large-diaphragm condenser captures vocals and instruments with pristine clarity, providing the ideal platform for Edge mic emulation plug-ins.
Boasting a specially designed low-resonance body, the Edge Duo features a pair of capsules with 6-micron gold-sputtered membranes. These edge-terminated capsules provide an incredibly smooth and natural response that can then be shaped to recreate the character of some of the costliest microphones in existence.

Crucially, the Edge Duo's two capsules feed two separate outputs, meaning that the signal from each capsule can be individual processed and recombined. While some mic modeling systems can only apply crude EQ adjustments on top of a static mic response, this dual capsule, dual output approach allows us to precisely model every polar pattern on every mic, with accurate on- and off-axis responses, for true multi-dimensional mic modeling.

Edge Duo is designed for all pre amp-equipped Antelope Audio interfaces and outstanding sound can only be guaranteed when used with them. If a user is interested in the Edge emulations but uses an interface from another brand, they should go for the Edge Strip bundle, which includes a perfectly matched two channel Discrete Preamp and several powerful native plugins.

The true voices of vintage microphones
Edge Duo includes eighteen timeless Edge mic emulations

- Berlin 47 FT- Berlin 47 TU

- Berlin 49T

- Berlin 57

- Berlin 67

- Berlin 87- Berlin K86

- Berlin M103

- Berlin M251

- Berlin V563- Berlin/Halske M25 - Illinois 7B - Minnesota 20 - Oxford 4038 - Sacramento 121R - Tokyo 800T - Vienna 12 - Vienna 414

and our own Antelope Edge model.

The activation code is in the Edge mic box.

Available in VST, AU and AAX formats for both macOS and Windows, our native Edge Duo mic emulations have a high degree of oversampling and precise floating-point calculations.

The Edge Duo mic native plugins are not sold separately. Their activation code is in the Edge mic box.

While the emulations will be accessible and usable with other gear, they remain closely bonded with Edge. Antelope Audio cannot guarantee for the sound quality of the emulations when used with third-party microphones, thus it is not recommended.

Ilok 2 or 3 required. Not included in the box

Specifications:
Microphone type: Condenser
Diaphragm: 34mm Large Condenser – Double sided with 6μm gold sputtered membranes
Polar Pattern: Multi-pattern
Freq. response: 20HZ – 20KHZ
Sensitivity: -35dB - 18mV/Pa (-1 to 3dB)
THD N: -116dB
Self-noise: 19dB(A)
SNR: 75dB(A)
Output impedance: 50 Ohms

Power Requirements: 48V DC Phantom Power
Output Connector: 5-pin male XLR
Color: Black matte
Weight (mic body): 1.23 lbs. (560 grams)
Dimensions (mic body): 8.6″ x 2.1″ (219mm x 53mm)
Breakout Cable: 16.4′ (5meters) 5-pin female XLR to dual 3-pin male XLR (High grade OFC Y cable)
Mount: Shock absorber type

Vintage Mic Emulations:

Berlin 47 FT will allow you to finally enjoy the authentic sound of one of the most popular microphones in history of audio recording. This emulation perfectly combines the wide dynamic range and meticulous attention to detail of the hardware original. It's perfect for capturing vocals, acoustic instruments and even aggressive sound sources like kick drums.

Berlin 87
This microphone is the way to go when recording piano, vocals, overheads, guitars, strings, brass section, percussion. Honestly, there's almost nothing that Berlin 87 can't handle. We're bringing this 1970s classic straight from the good old times to your 21st century studio. No pro can live without an 87 so it was high time you got yours!

Berlin 67
Berlin 67 carries the true sound of an iconic tube condenser microphone with multiple polar patterns. This German legend can record in omni, cardiod or figure eight. Its popularity is due to its signature sound and flexibility. Berlin 67 is powerful multi-purpose mic that is a must-have for any studio.

Tokyo 800T
Wondering what lies behind the silky and smooth vocals on your favorite records? Chances are high that it's exactly the Japanese microphone legend we modeled our Tokyo 800T after. This vintage tube mic is a top choice for all masters of vocals recordings. With a super low noise-floor and
