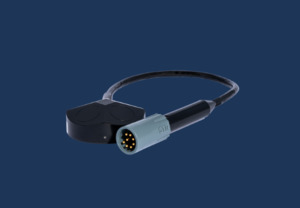

DVL A50

The provides accurate velocity data relative to the seabed. This data allows underwater vehicles and divers to navigate with greater precision and stability, even in dynamic environments like strong currents or complex terrain. Technical specifications Mechanical

- Device diameter 66 mm
- Device height 25 mm
- Device weight (air) 170 grams
- Device weight (submerged) 105 grams
- Depth rating 300 or 600 meters
- Materials PEEK (housing)
- Stainless steel 316 (back plate)
- Operating temperature -5 to 55 °C
Electrical / Interface

- Input voltage 10-30 Vdc
- Power consumption 4 W (average)
- Power-on current surge 35 W (maximum)
- Physical interface 8 wires (pwr/serial/Ethernet)
- 3 meter cable (PUR 6.7 mm diameter)
- with interface module
- Indicator Status LED (Power, Lock) ​
- Communication UART 115200 baud serial 3,3V
- Ethernet ​
- Protocols Water Linked API and PD6 URL ​
Acoustic / Performance

- Transducer frequency 1 MHz
- Transducer setup 4-beam convex Janus array
- Transducer beam angle 22.5 degrees
- Ping rate 4-15 Hz (adaptive to altitude)
- Sensor assist Integrated AHRS/IMU (Yost Labs TSS-NANO)
- Min altitude 5 cm
- Max altitude 50 meters
- (Altitude >35 meter is dependent
- on seabed conditions, salinity levels.)
- Max velocity 3.75 m/s
- Velocity resolution 0.1 mm/s
- Long term accuracy ±1.01 % (Standard version)
- ±0.1 % (Performance version) Approvals

- CE certificate
Yes
- RoHS compliant
