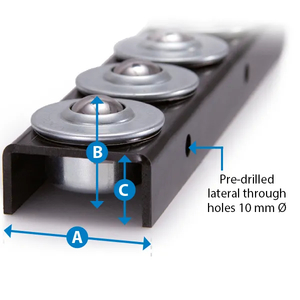

Efficient Ball Transfer Rails for Custom Conveying Solutions

Standard Materials - Carbon steel balls, case hardened internal cap & zinc-plated pressings. Material upgrade options: Stainless Steel Balls All Stainless Steel Parts Nylon main ball Switch measurements: Metric (mm/kg) Imperial (inch/lb) Part Rail Length number of units Spacing Ball Ø Unit MAX LOAD (LB) MAX LOAD (KG) A B C £ from Files R15-400 15.748 400 10 1.575 40 0.625 15 130 60 1300 600 1.575 40 1.358 34.5 0.984 25 £ PDF Step R15-600 23.622 600 15 1.575 40 0.625 15 130 60 1950 900 1.575 40 1.358 34.5 0.984 25 £116.76 PDF Step R22-400 15.748 400 8 1.969 50 0.875 22 350 160 2800 1280 1.969 50 1.370 34.8 0.984 25 £113.89 PDF Step R22-600 23.622 600 12 1.969 50 0.875 22 350 160 4200 1920 1.969 50 1.370 34.8 0.984 25 £170.81 PDF Step R30-400 15.748 400 7 2.264 58 1.188 30 620 280 4340 1960 2.362 60 1.528 38.8 0.984 25 £133.57 PDF Step R30-600 23.622 600 10 2.362 60 1.188 30 620 280 6200 2800 2.362 60 1.528 38.8 0.984 25 £190.81 PDF Step R1...
