Flexible Conveyors

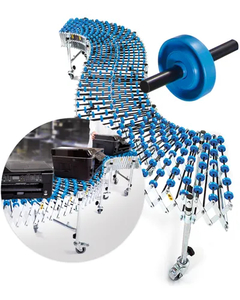

Omnitrack – Versatile & mobile conveyor modules. Compact conveyors extend up to 3.6 times their retracted length & sturdy castors are then locked once positioned. All models are height adjustable & assembled with either Skatewheels for flat based items & tighter turns, or Conveyor Rollers for Increased support of irregular/deformable items. Rollers & wheels are produced from low-inertia, high-impact PVC.

- 80 kg/metre load rating.
- Adjustable working height (650 – 1100mm).
- Maximum axle pitch 125mm (extended).
- 400 mm or 600 mm standard conveyor width.
- Other models & materials available. with Skatewheels

- For flat-based items & for tighter turns. Switch measurements: Metric (mm/kg) Imperial (inch/lb) 400 mm width 600 mm width Extended Length Retracted Length S400/2000 S600/2000 78.7 2 24.8 0.63 S400/3500 S600/3500 137.8 3.5 40.2 1.02 S400/5000 S600/5000 196.9 5 55.5 1.41 S400/6500 S600/6500 255.9 6.5 70.9 1.80 S40...
