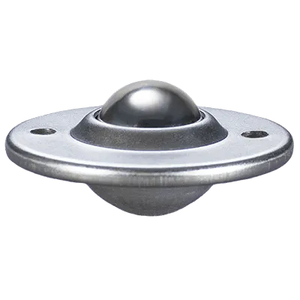

LD Series Light Duty Saturn Type Ball Transfers

Standard Materials - Carbon steel balls, case hardened internal cap & zinc-plated pressings. Material upgrade options: Stainless Steel Balls All Stainless Steel Parts Nylon main ball Switch measurements: Metric (mm/kg) Imperial (inch/lb) Part Load (lb) Load (kg) Weight BALL ⌀ ″ Ball Ø (mm) A B C D E F G H £ from Files LD16 33 15 0.098 0.045 5/8" 15 1.614 41 0.422 10.8 0.197 5 0.945 24 0.335 8.5 0.125 3.2 1.181 30 2 x 0.134 2 x 3.4 £ PDF Step LD19 55 25 0.197 0.090 3/4" 19 2.406 61 0.394 10 0.125 3.2 1.145 29.1 0.472 12 0.125 3.2 1.750 44.5 2 x 0.201 2 x 5.1 £2.64 PDF Step LD19/3 55 25 0.195 0.089 3/4" 19 2.406 61 0.394 10 0.125 3.2 1.145 29.1 0.472 12 0.125 3.2 1.750 44.5 3 x 0.201 3 x 5.1 £2.64 PDF Step LD23 265 120 0.211 0.096 7/8" 23 1.772 45 0.391 9.8 0.244 6.2 1.297 33 0.703 17.9 0.141 3.6 1.535 39 3 x 0.138 3 x 3.5 £5.06 PDF Step LD25 120 55 0.374 0.170 1" 25.4 2.875 73 0.563 14.2 0.250 6.3 1.469 37.2 0.625 15.8 0.14...
