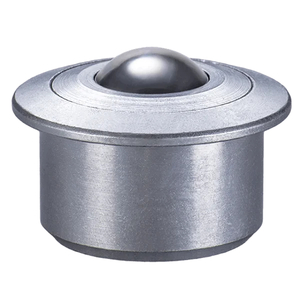

M Series Steel Ball Transfer Units by Omnitrack

Standard Materials - Chrome steel bearings, zinc plated body & cap. Material upgrade options: Stainless Steel Balls All Stainless Steel Parts Nylon main ball Switch measurements: Metric (mm/kg) Imperial (inch/lb) Part Load (lb) Load (kg) Weight BALL ⌀ ″ Ball Ø (mm) A A B B C D E £ from Files M12 55 25 0.084 0.038 1/2" 12 0.866 22 - - 0.315 8 - - 0.126 3.2 1.063 27 0.657 ❋ 16.7 ❋ £ 0 PDF Step M14 132 60 0.117 0.053 5/8" 15 0.945 24 0.984 - 1.004 25 - 25.5 0.319 8.1 0.331 8.4 0.197 5 1.181 30 0.787 20 £7.63 PDF Step M15 132 60 0.130 0.059 5/8" 15 0.945 24 0.984 - 1.004 25 - 25.5 0.374 9.5 0.386 9.8 0.157 4 1.220 31 0.827 21 £6.40 PDF Step M22 397 180 0.417 0.189 7/8" 22 1.417 36 1.457 - 1.465 37 - 37.2 0.386 9.8 0.398 10.1 0.150 3.8 1.772 45 1.201 30.5 £8.20 PDF Step M25 441 200 0.425 0.193 1" 25 1.496 38 - - 0.512 13 - - 0.236 6 1.811 46 1.201 ❋ 30.5 ❋ £9.73 PDF Step M30 772 350 0.794 0.360 1 3/16" 30 1.772.....
